SKU:

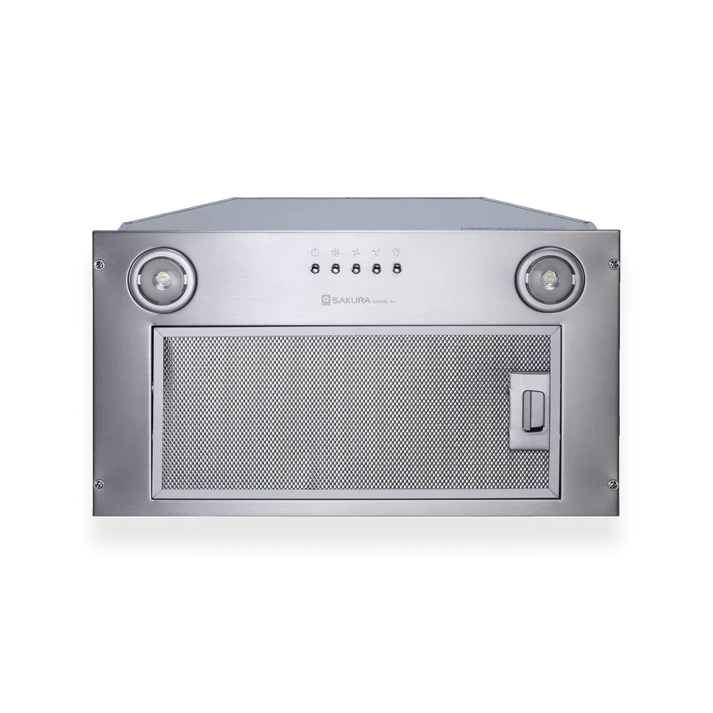

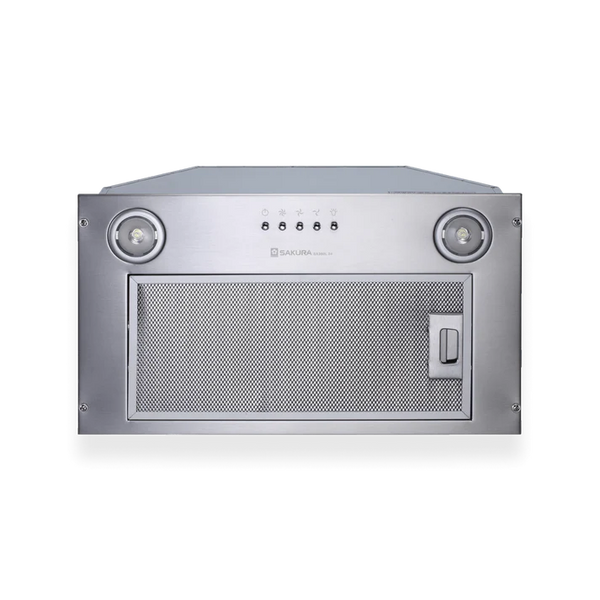

SA-390L Sakura 24" or 30" Range Hood
$549.00
Key Features Dimension + Weight Specification Buying Tips Warranty + User Manual Made in Taiwan 450 CFM extraction for removing smoke, steam, odors and bacteria 3 layers of aluminum grease filter system, detachable and dishwasher safe Operates with a quiet sound level less than 62 dB 2 LED Lights Push button control with 3‑speed...
Key Features
Dimension + Weight
Specification
Buying Tips
Warranty + User Manual
- Made in Taiwan
- 450 CFM extraction for removing smoke, steam, odors and bacteria
- 3 layers of aluminum grease filter system, detachable and dishwasher safe
- Operates with a quiet sound level less than 62 dB
- 2 LED Lights
- Push button control with 3‑speed control
- All parts are made at Sakura Taiwan with excellent quality control.
Dimension (Inches):
24" Model – 20.5" W × 11.6" D × 10.2" H
30" Model – 27.5" W × 11.6" D × 10.2" H
Net Weight: 9 kg
Gross Weight: 10 kg
- Motor: Single AC motor
- Filter: 3‑Layer Aluminum Mesh Filter
- Duct Size: 6”
- Illumination: LED × 2
- Switch Type: Metal Push Button
- Speed: 3 speeds
- Noise level: 2 ‑ 6 Sones
- CFM: 250 ‑ 450
- Power Consumption: 160 W
- Voltage: 120V ~ 60Hz
- Safety Certificate: CSA
- Origin: Made in Taiwan
Step 1: Measuring the duct size — Sakura range hoods require a duct size of 6” or larger round opening.
Step 2: Measuring the distance between range hood and countertop — From the bottom of the cabinet, or the top of the range hood, to the countertop.
Distance Requirement from top of hood to countertop:
- Electric stove: 23‑25”
- Gas stove: 25‑27”
Warranty: One Year Parts and Five‑Year Motor Warranty. We offer a five‑year limited warranty on range hood motors, starting from the purchase date. Additionally, we provide a one‑year general warranty (including parts and labor) for all range hood products.
User Manual: English Manual – SA‑390L Series
