Description
Key FeaturesDimension + WeightSpecificationBuying TipsWarranty + User Manual- Made in Taiwan
- Max 700 CFM
- The U3H is a self‑cleaning model designed for North America stoves
- The fans are 14″ away from the wall and are right above the stove’s front burners for the most direct ventilation
- Additional four vent openings in rear of hood quickly exhaust steam
- In a click of a button, the self‑clean function will heat up the inside of the range hood and melt up to 90% oil build‑up; it will automatically shut off after cleaning cycle, hassle free and easy to use
- Heat cleaning process is quiet and thorough, prolonging the lifespan of the range hood
- Two powerful centrifugal heavy‑duty motors and dual turbo blow wheels revolve in opposite directions to reduce noise and increase suction power
- Patented dishwasher safe removable front and rear oil collectors
- Replaceable patented grease‑trapping aluminum filter system
- Front smoke cover prevents smoke and steam from escaping
- Round rocker switch with 2‑speed control

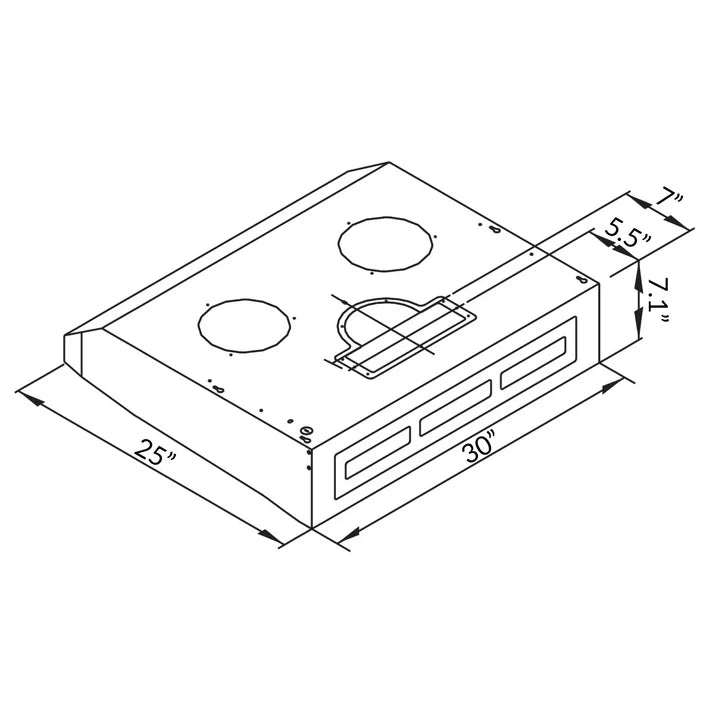

Dimension (Inches):
30″ Model – 30″ W × 25″ D × 7.1″ H
Net Weight: 13.7 kg
Gross Weight: 17.7 kg
- Motor: Twin AC Motors
- Filter: Aluminum Mesh Filter
- Duct Size: 6″
- Illumination: 14 W light bulb
- Switch Type: Rocker Switch
- Speed: 2 speeds
- Noise level: 2 ‑ 4 Sones
- CFM: 350 ‑ 700
- Power Consumption: 345 W
- Voltage: 120V ~ 60Hz
- Safety Certificate: CSA
- Origin: Made in Taiwan
Step 1: Measuring the duct size — Sakura range hoods require a duct size of 6″ or larger round opening.
Step 2: Measuring the distance between range hood and countertop — From the bottom of the cabinet, or the top of the range hood, to the countertop.
Distance Requirement from top of hood to the counter top:
- Electric stove: 30‑32″
- Gas stove: 33‑35″
Warranty: One Year Parts and Five‑Year Motor Warranty. We offer a five‑year limited warranty on range hood motors, starting from the purchase date. Additionally, we provide a one‑year general warranty (including parts and labor) for all range hood products.
User Manual: English/Chinese/French Manual – U3H Series
