Description
Key FeaturesDimension + WeightSpecificationBuying TipsWarranty + User Manual- Made in Taiwan
- Max 750 CFM

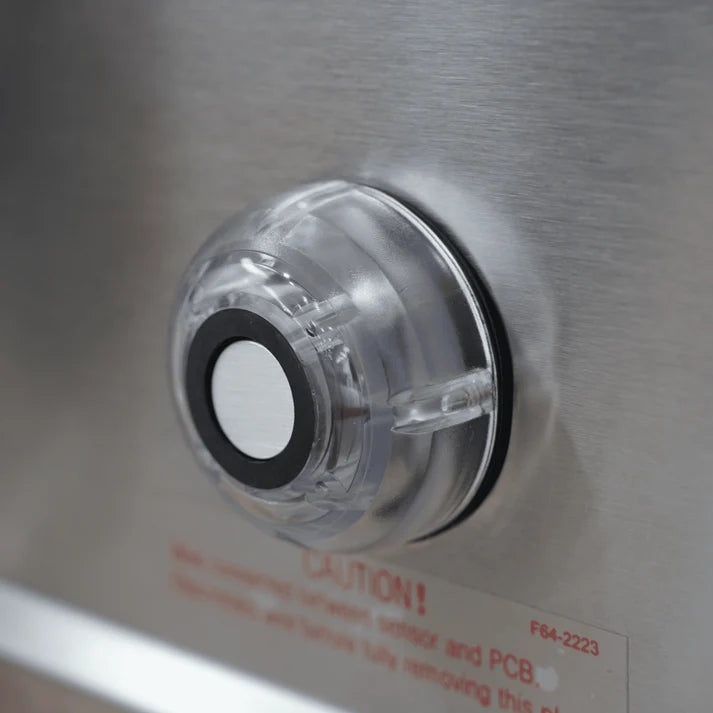

- R 8168F has automatic FUZZY logic sensor control, it automatically adjusts fan speeds based on the volume and temperature of the smoke/steam in the air with auto mode
- Air fresh mode: The range hood runs on low to clear remaining smoke and odors after cooking
- Soft touch switch control with 3 speeds and the sensor function gives you additional auto speed
- Patented Sakura trapping aluminum filters are easy to clean and cheap to replace
- Twin centrifugal Teflon‑coated non‑stick turbo fans
- Patented dishwasher safe removable front and rear oil collectors
- Front smoke cover prevents smoke and steam from escaping
- Dual LED lighting

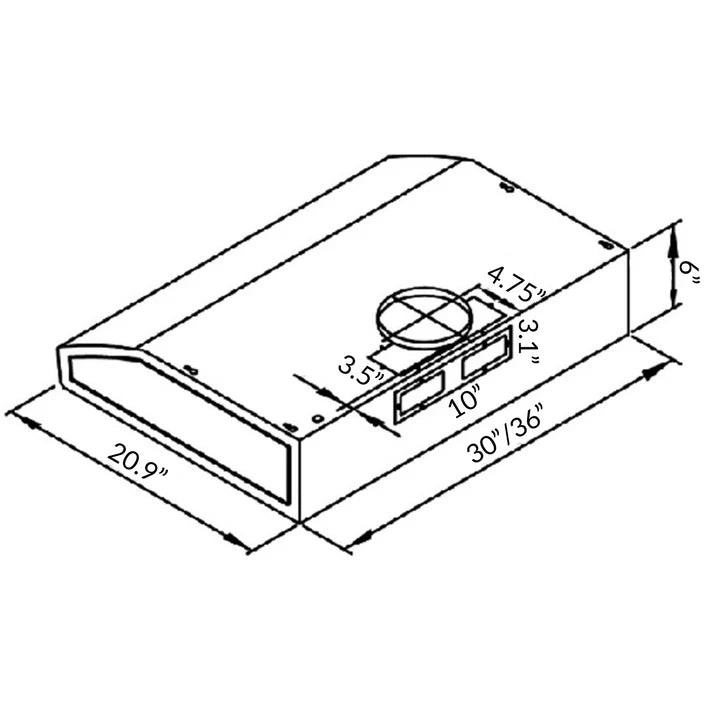

Dimension (Inches):
30" Model – 30" W × 20.9" D × 6" H
36" Model – 36" W × 20.9" D × 6" H
Net Weight: 13.6 kg
Gross Weight: 14.5 kg
- Motor: Twin AC Motors
- Filter: Aluminum Mesh Filter

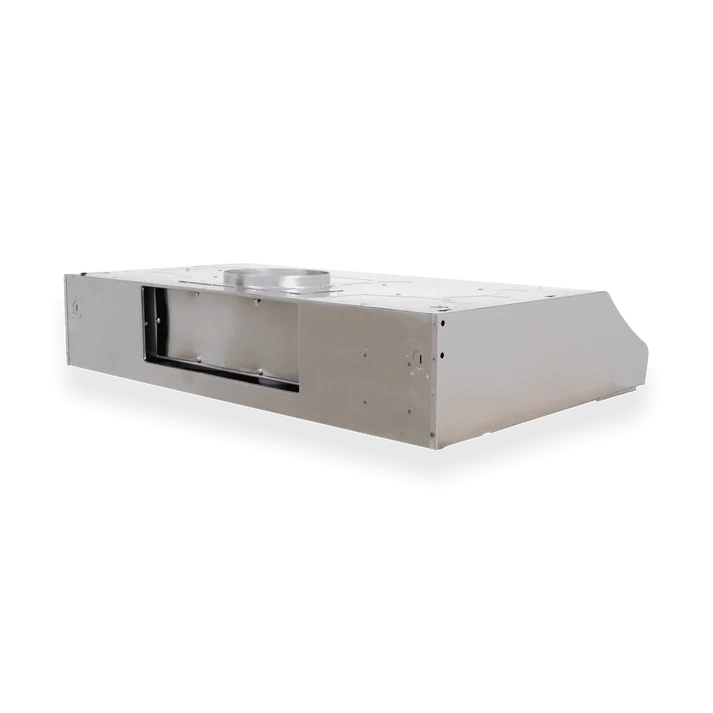

- Duct Size: 6" / Rear 3.1” × 10”
- Illumination: 7W LED × 2
- Switch Type: Soft Touch Switch
- Speed: 3 speeds
- Noise level: 0.5 ‑ 4 Sones
- CFM: 250 ‑ 750
- Power Consumption: 240W
- Voltage: 120V ~ 60Hz
- Safety Certificate: CSA
- Origin: Made in Taiwan
Step 1: Measuring the duct size — Sakura range hoods require a duct size of 6” or larger round opening.
Step 2: Measuring the distance between range hood and countertop — From the bottom of the cabinet, or the top of the range hood, to the countertop.
Distance Requirement from top of hood to the counter top:
- Electric stove: 30‑32”
- Gas stove: 33‑35”
Warranty: One Year Parts and Five‑Year Motor Warranty. We offer a five‑year limited warranty on range hood motors, starting from the purchase date. Additionally, we provide a one‑year general warranty (including parts and labor) for all range hood products.
User Manual: English Manual – R‑8168F Series
