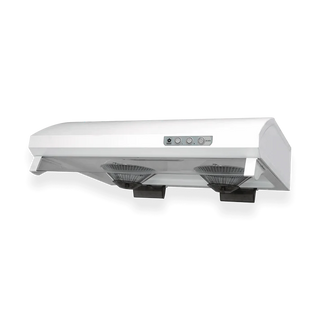

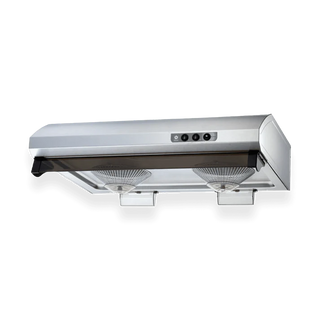

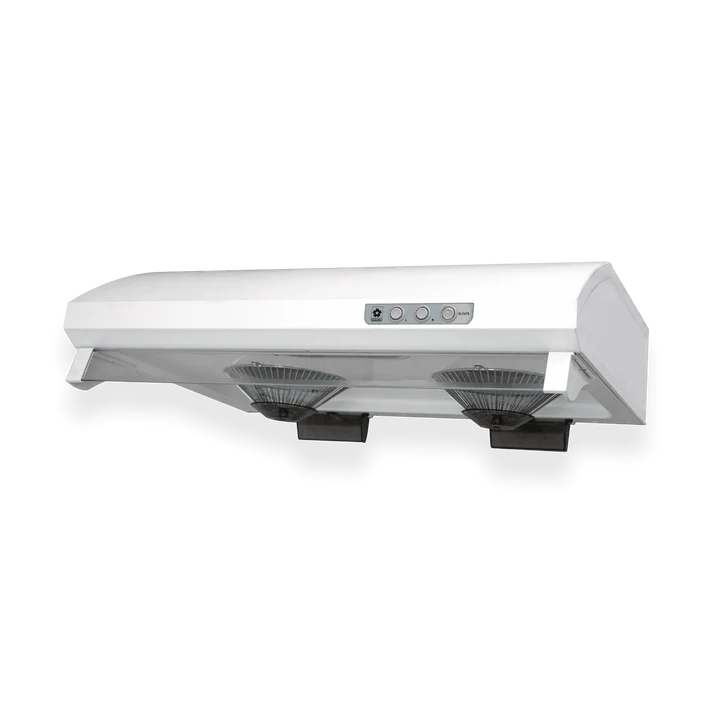

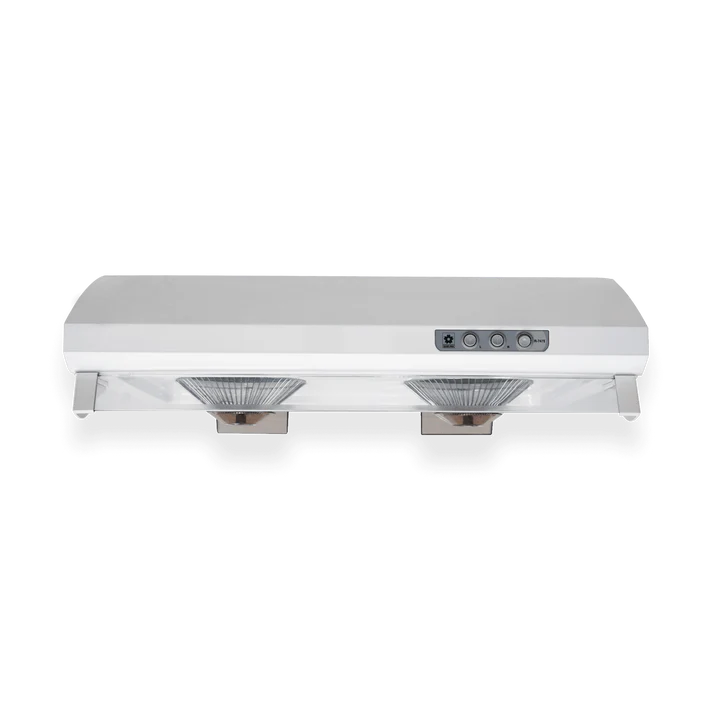

Description
Key FeaturesDimension + WeightSpecificationBuying TipsWarranty + User Manual- Made in Taiwan
- Max 750 CFM
- R‑747II is all‑around value leader in Sakura family

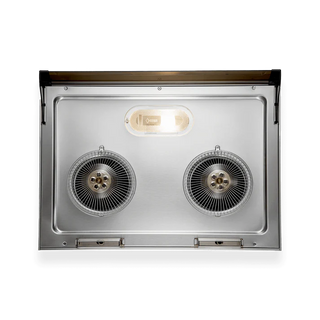

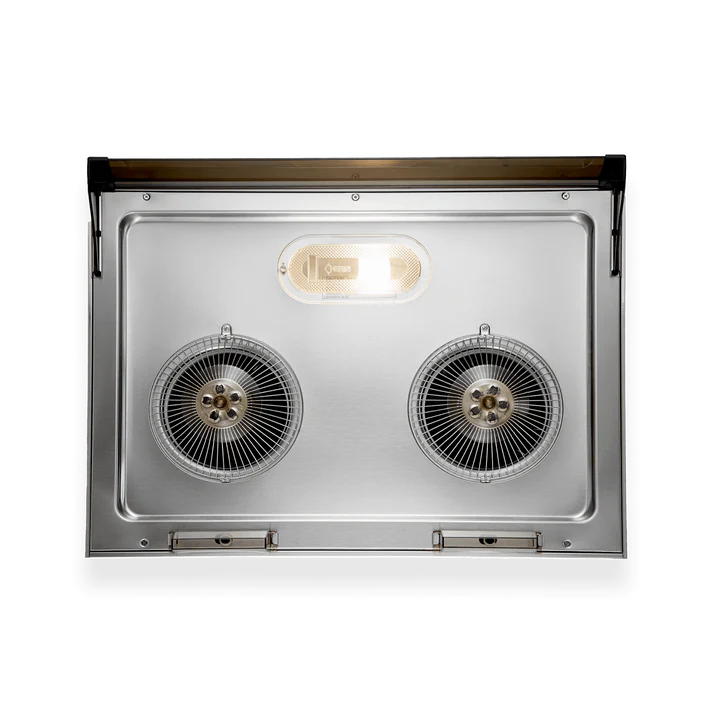

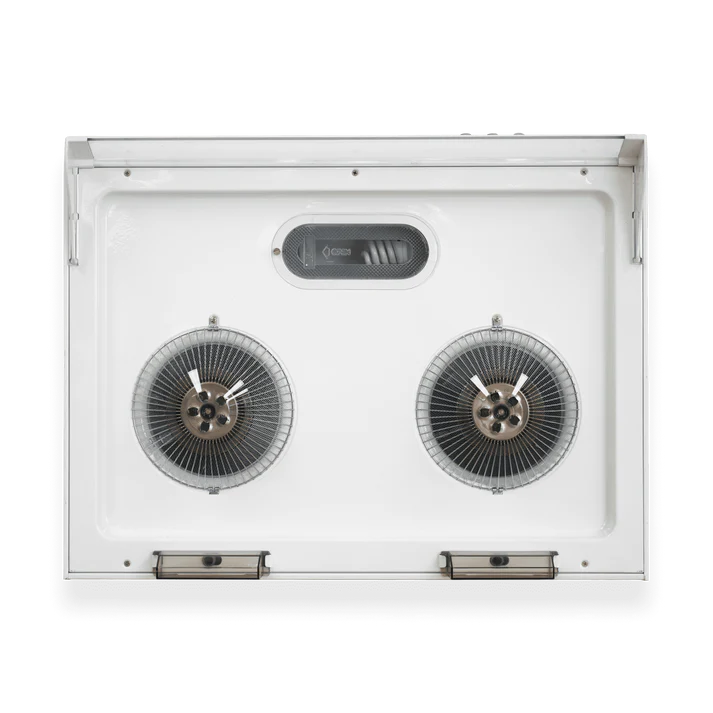

- Two powerful centrifugal motors that are independently controlled

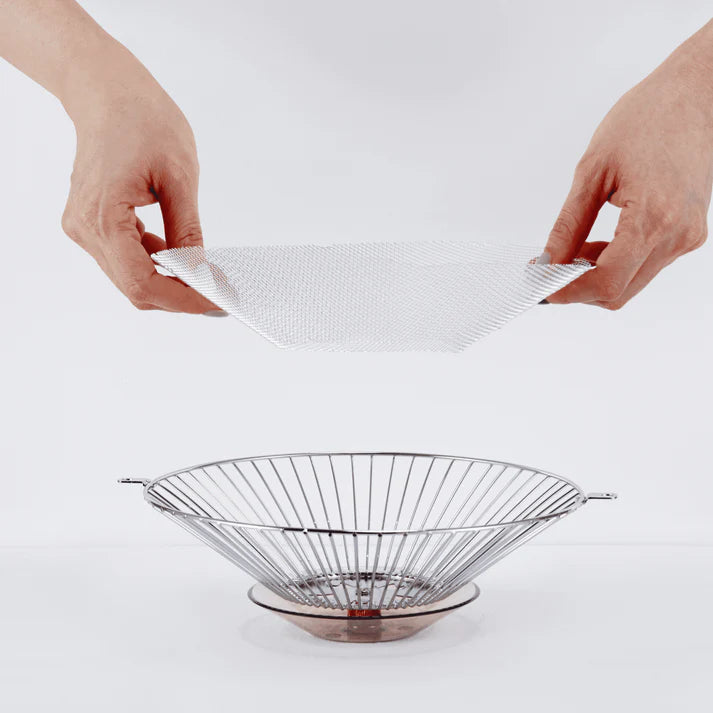

- Patented Sakura aluminum filters extract 60% of the grease that is in the air before entering your range hood and prevents oil from dripping
- Teflon coated non‑stick fans prevent grease build‑up inside the hood
- Patented dishwasher safe removable front and rear oil collectors
- Front smoke cover prevents smoke and steam from escaping
- Round rocker switch with 2‑speed control
- Individual light control switch

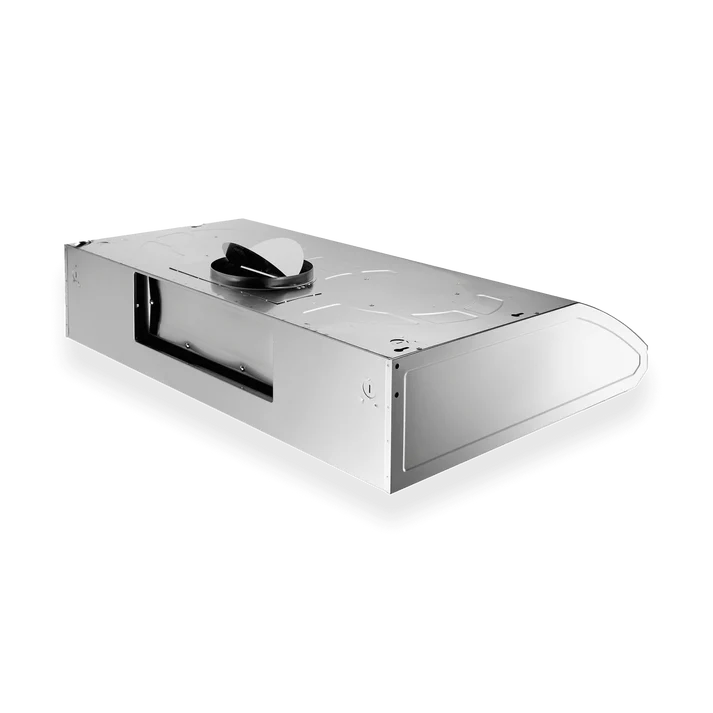

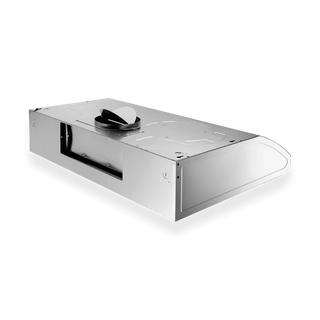

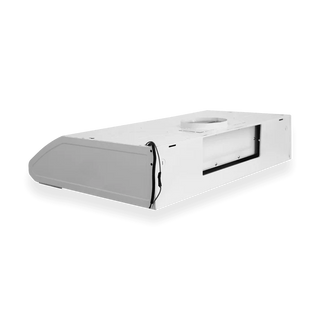

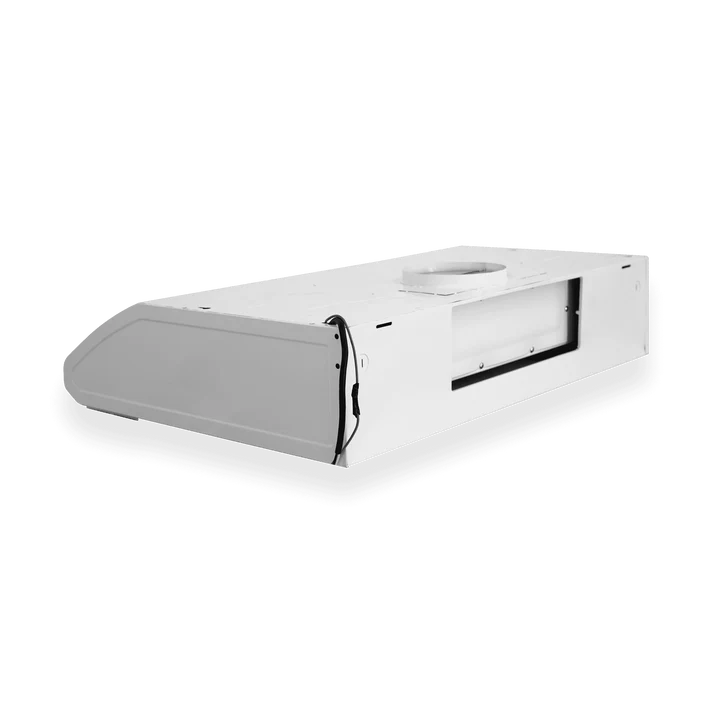

- 3‑way ducting: top 6" round opening, top 3 1/8" × 10" rectangular opening, rear 3 1/8" × 10" rectangular opening

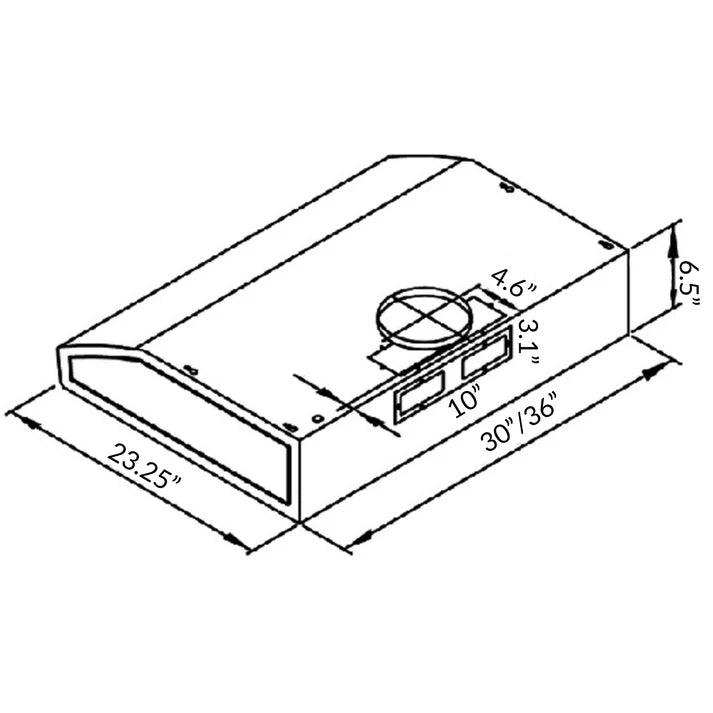

Dimension (Inches):
30" Model – 29.7" W × 23.4" D × 6.5" H
36" Model – 35.4" W × 23.4" D × 6.5" H
Net Weight: 12.8‑16 kg
Gross Weight: 15.6‑19 kg
- Motor: Twin AC Motors
- Filter: Aluminum Mesh Filter
- Duct Size: 6" / Rear 3.1" × 10"
- Illumination: 14W light bulb × 1
- Switch Type: Rocker Switch
- Speed: 2 speeds
- Noise level: 2 ‑ 4 Sones
- CFM: 385 ‑ 750
- Power Consumption: 230W
- Voltage: 120V ~ 60Hz
- Safety Certificate: CSA
- Origin: Made in Taiwan
Step 1: Measuring the duct size — Sakura range hoods require a duct size of 6” or larger round opening.

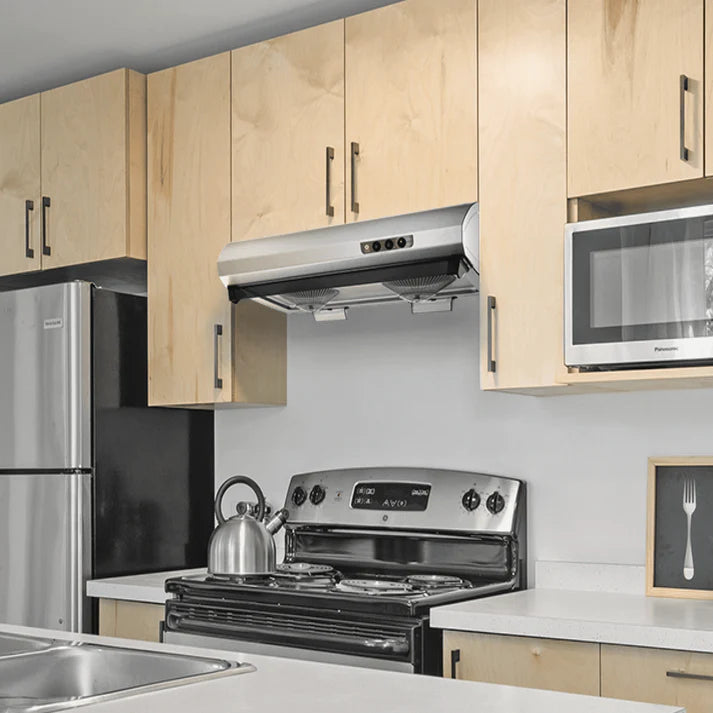

Step 2: Measuring the distance between range hood and countertop — From the bottom of the cabinet, or the top of the range hood, to the countertop.
Distance Requirement from top of hood to the counter top:
- Electric stove: 30‑32”
- Gas stove: 33‑35”
Warranty: One Year Parts and Five‑Year Motor Warranty. We offer a five‑year limited warranty on range hood motors, starting from the purchase date. Additionally, we provide a one‑year general warranty (including parts and labor) for all range hood products.
User Manual: English Manual – R‑747II Series
