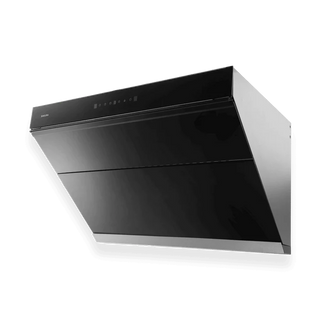

Description
Key FeaturesDimension + WeightSpecificationBuying TipsWarranty + User Manual- Max 1000 CFM
- 3-min timer, extracts lingering odors after cooking

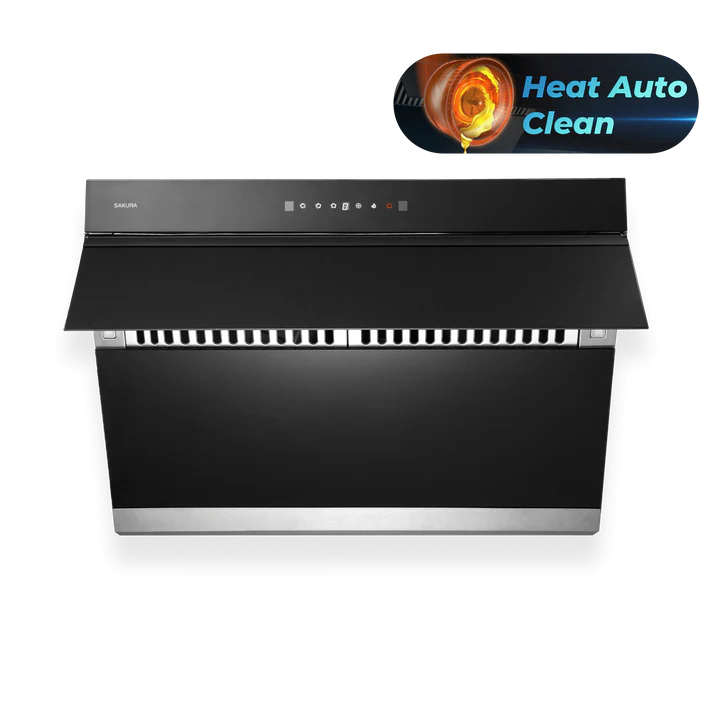

- 10-min auto heating for interior cleaning with one simple touch
- Infrared sensor control: turn range hood on/off, lights up, and adjust speed with a wave of your hand
- Touch-free operation prevents fingerprints on the hood

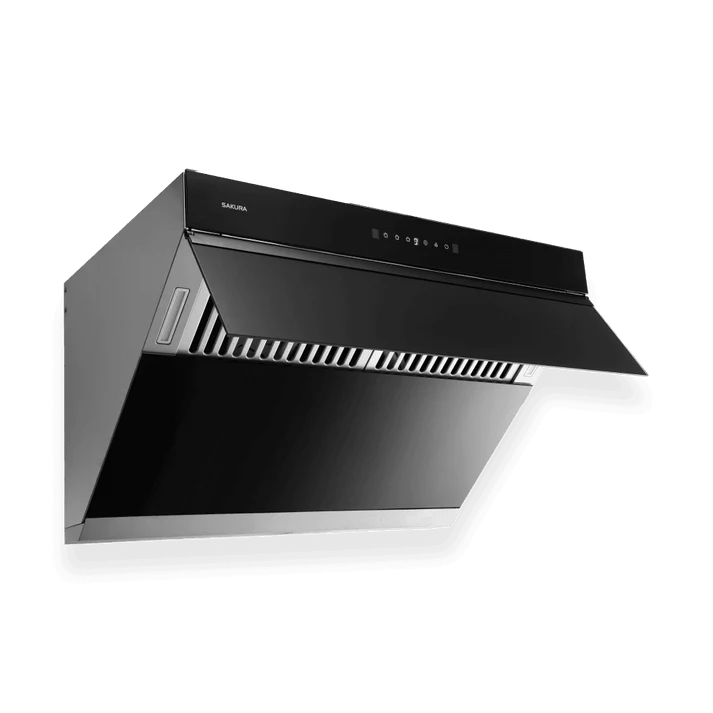

- Powerful suction with 23-inch depth, complete fume exhausting; 90° golden optimum angle for efficient smoke capture

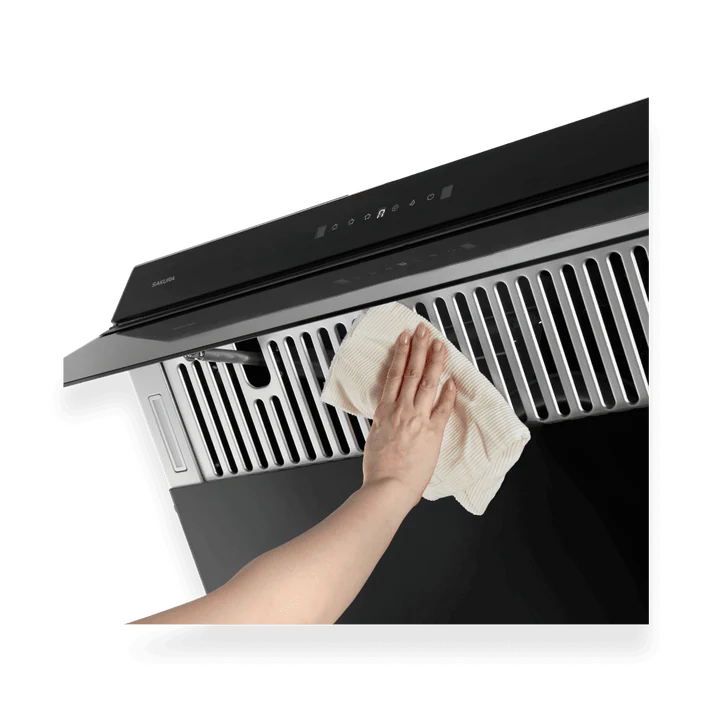

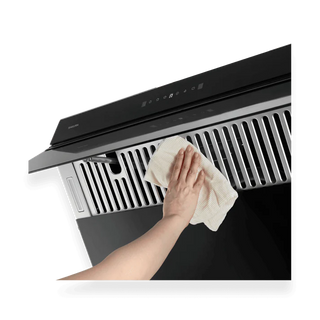

- Nanotech oil-free coating with self-cleaning property; large grease tray; surface easily cleaned with kitchen cloth

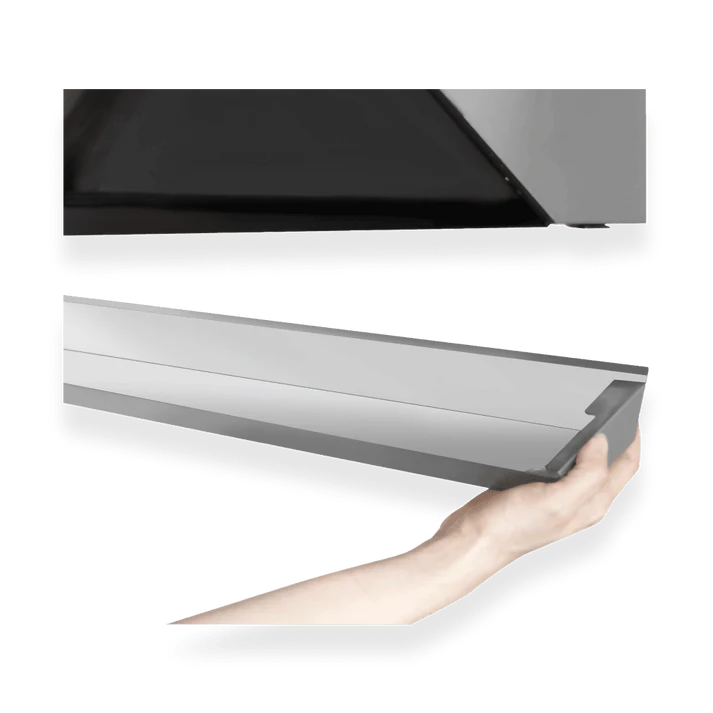

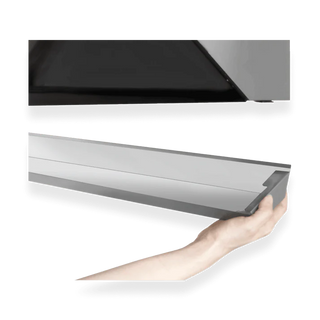

- Stainless steel large oil tank reduces cleaning frequency
- Sound reminder and 3-second delay closing for safer operation; Screen Lock Function prevents accidental start
- 3 Prong plug-in cable

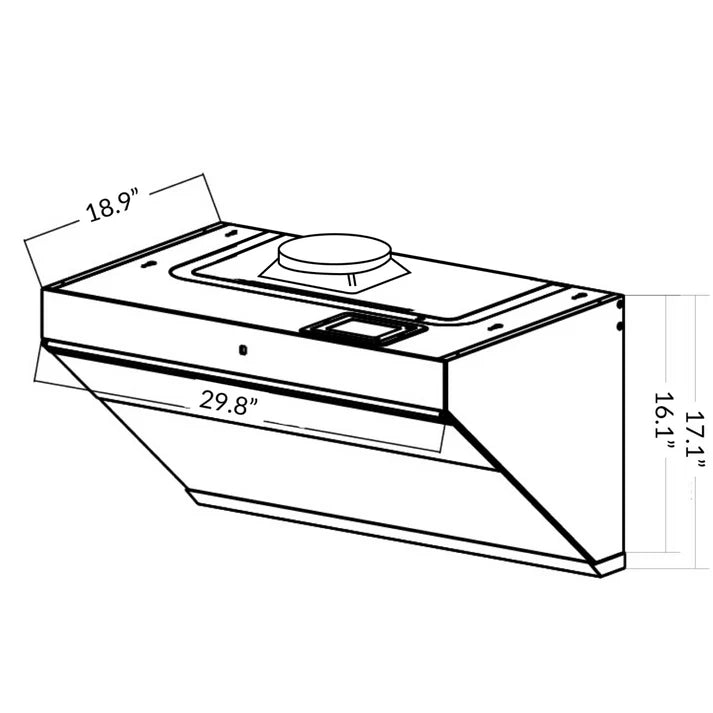

Dimension (Inches): 30" Model - 29.8" W x 18.9" D x 17.1" H
Net Weight: 19kg
Gross Weight: 23.6kg
- Motor: Single AC motor
- Filter: Stainless Baffle Filter

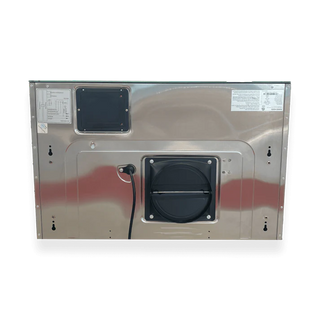

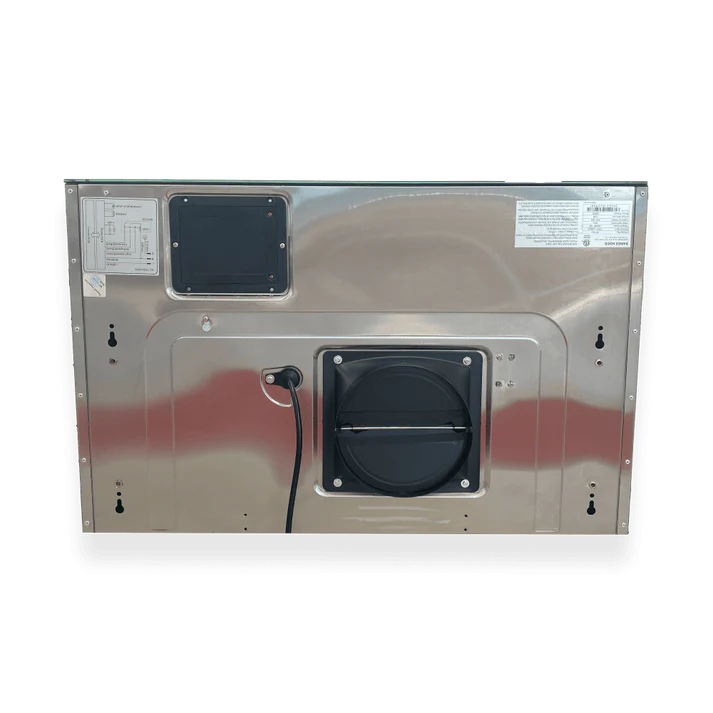

- Duct Size: 6" / 7"

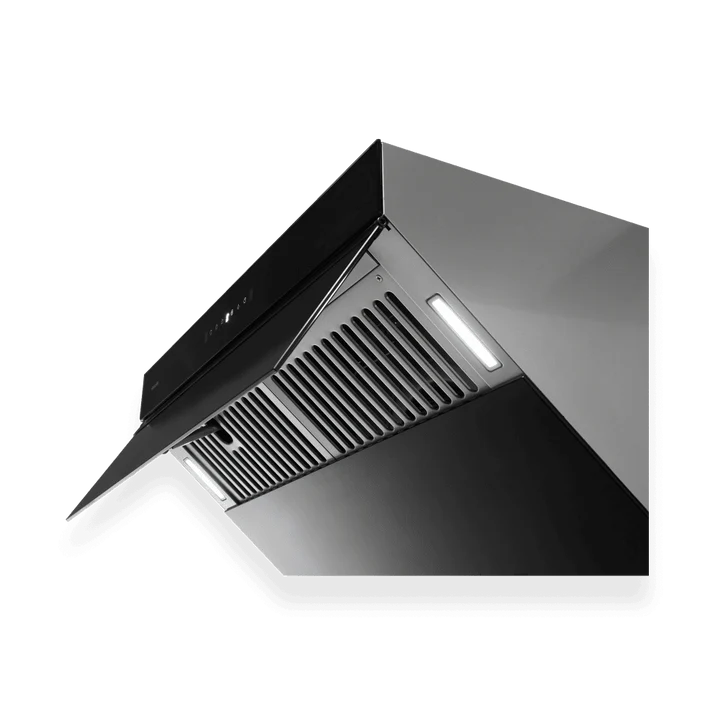

- Illumination: LED 1.5W*2

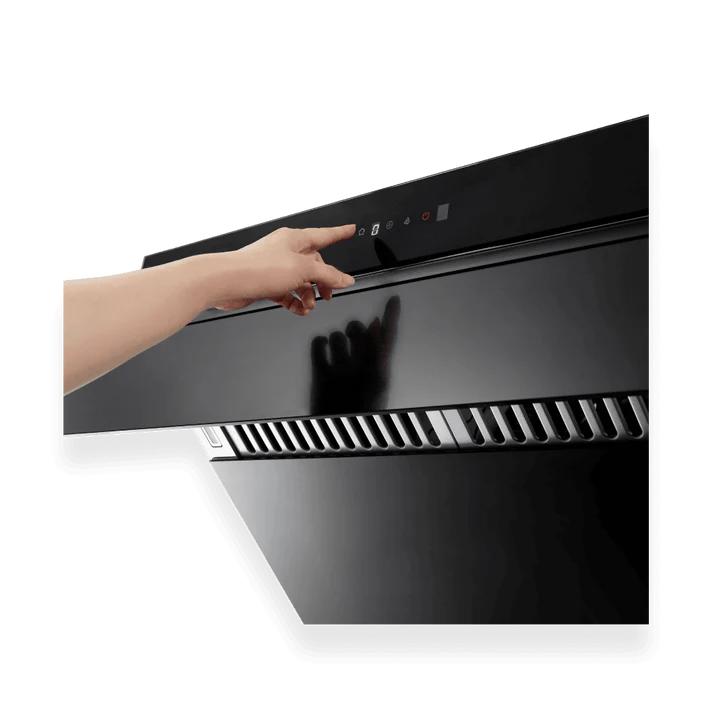

- Switch Type: Wave control and sensor touch screen
- Speed: 3 speeds
- Noise level: 2 - 5 Sones
- CFM: 300 - 1000
- Power Consumption: 350W
- Voltage: 120V~60Hz
- Safety Certificate: ETL
- Origin: Designed in Taiwan
Step 1: Measuring the duct size — Sakura range hoods require a duct size of 6” or larger round opening.

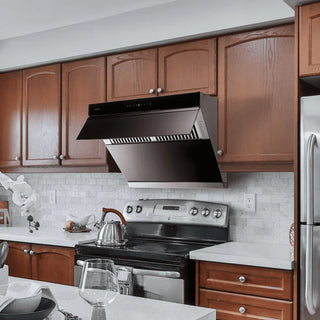

Step 2: Measuring the distance between range hood and countertop — From the bottom of the cabinet, or the top of the range hood, to the countertop.
Distance Requirement from top of hood to counter top:
- Electric stove: 33-35”
- Gas stove: 34-36”
Warranty: One Year Parts and Five-Year Motor Warranty. We offer a five-year limited warranty on range hood motors, starting from the purchase date. Additionally, we provide a one-year general warranty (including parts and labor) for all range hood products.
User Manual: English Manual | Chinese Manual
