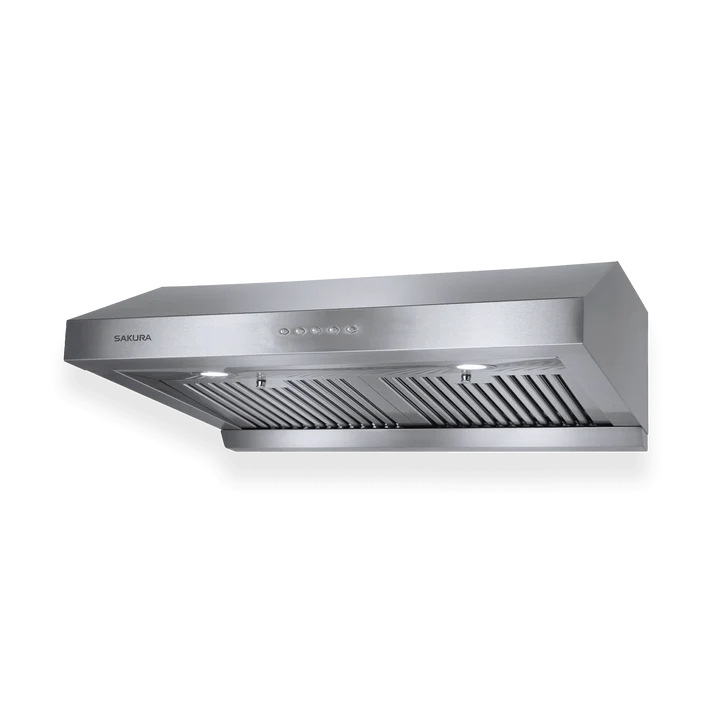

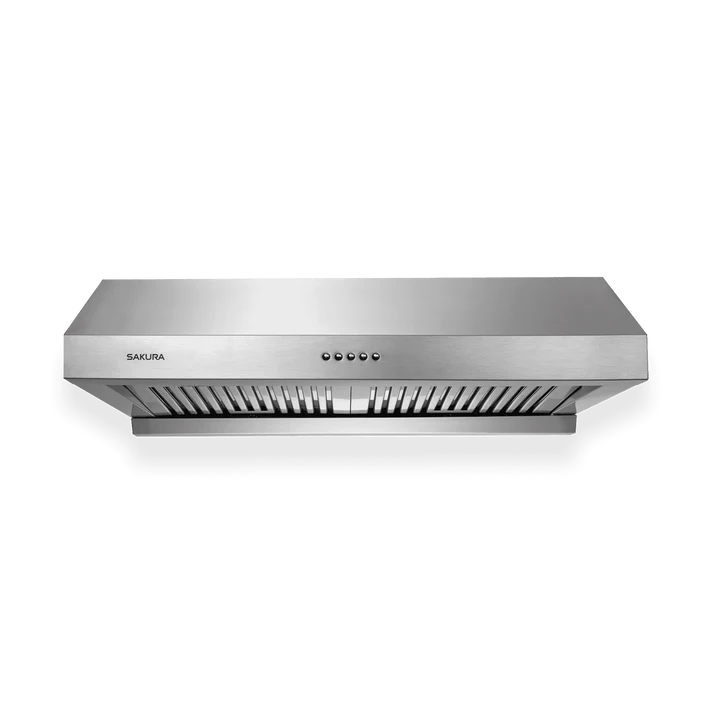

Description
Key FeaturesDimension + WeightSpecificationBuying TipsWarranty + User Manual- Max 800 CFM

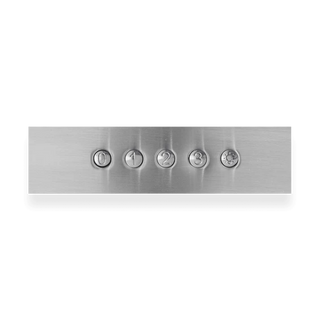

- Metal button with 3 speeds control
- AC Twin motors with powerful suction

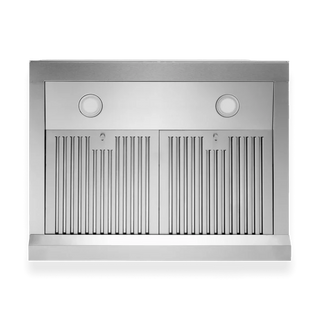

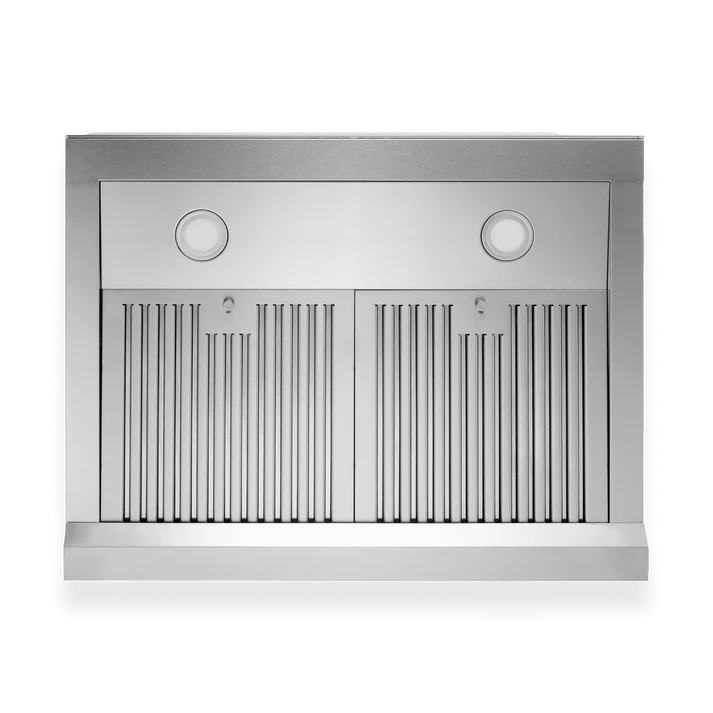

- Baffle filter system, all stainless steel dishwasher safe and easy clean
- Seamless design, the contemporary style of modern kitchen

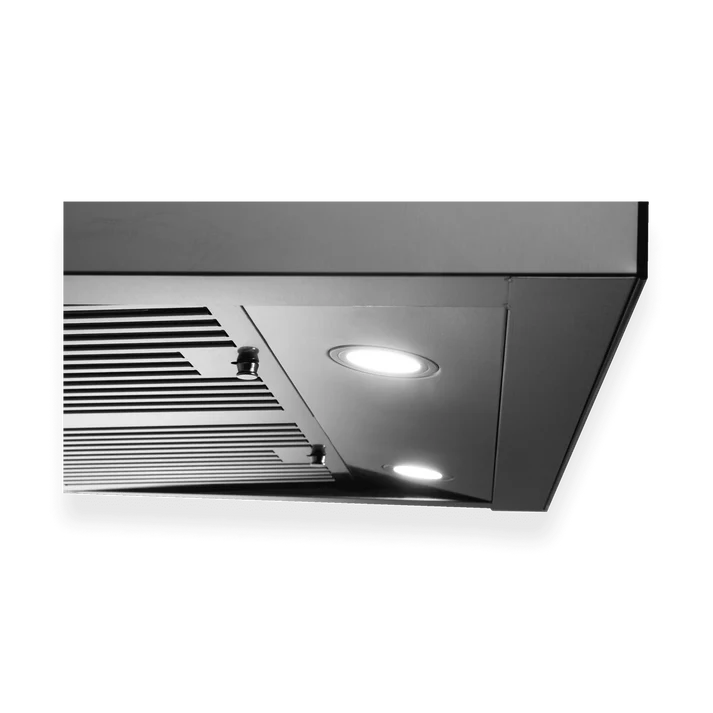

- Dual LED light both bright and save energy

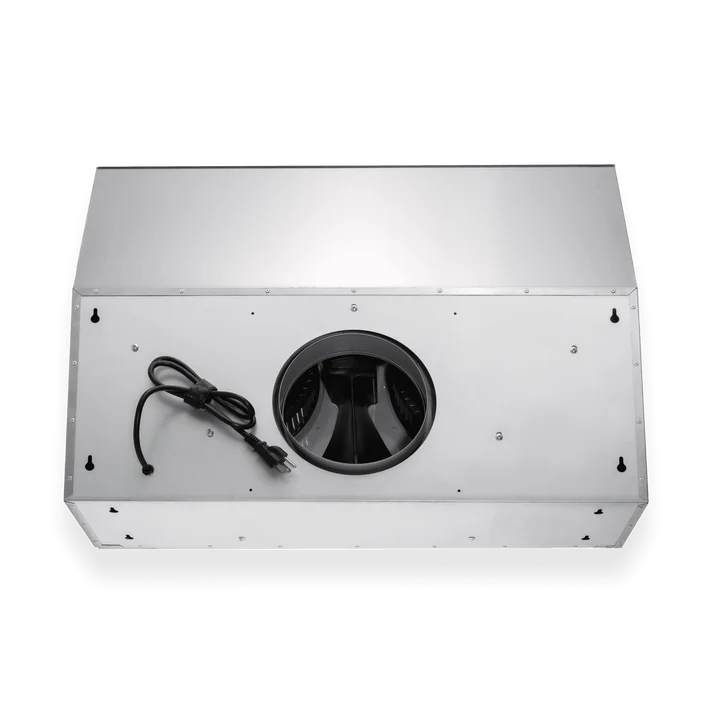

- 3 prong plug in cable

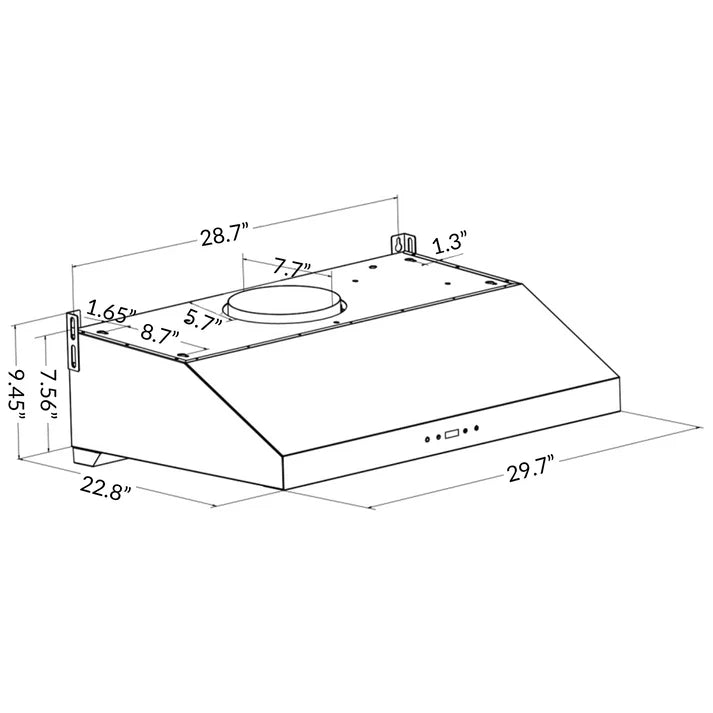

Dimension (Inches): 30" Model – 29.7" W × 22.8" D × 7.6" H
Net Weight: 22kg
Gross Weight: 24kg
- Motor: Twin AC Motors
- Filter: Stainless Baffle Filter
- Duct Size: 6” – 8”
- Illumination: LED 1.5W × 2

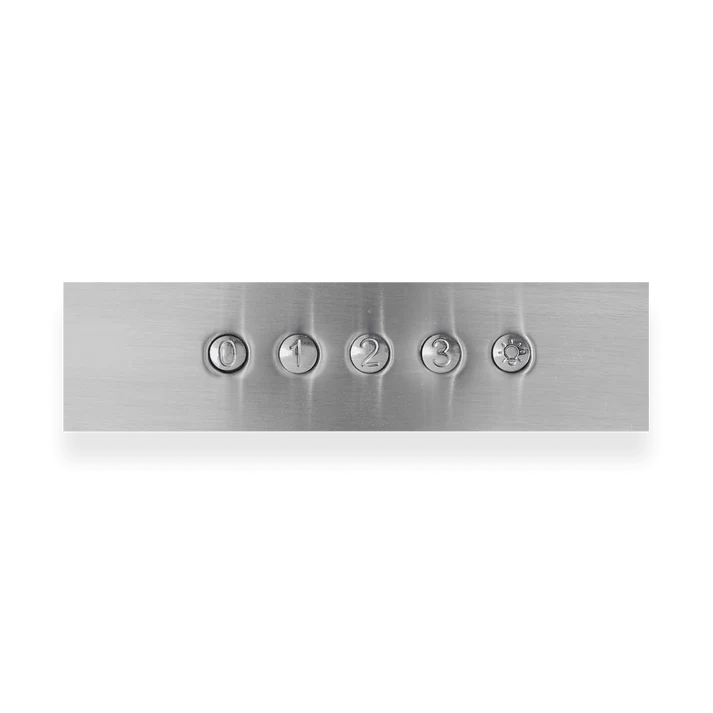

- Switch Type: Metal Push Button
- Speed: 3 speeds
- Noise level: 2 – 5 Sones
- CFM: 300 – 800
- Power Consumption: 280W
- Voltage: 120V ~ 60Hz
- Safety Certificate: ETL
- Origin: Designed in Taiwan
Step 1: Measuring the duct size — Sakura range hoods require a duct size of 6” or larger round opening.
Step 2: Measuring the distance between range hood and countertop — From the bottom of the cabinet, or the top of the range hood, to the countertop.
Distance Requirement from top of hood to countertop:
- Electric stove: 32‑34”
- Gas stove: 34‑36”
Warranty: One Year Parts and Five‑Year Motor Warranty. We offer a five‑year limited warranty on range hood motors, starting from the purchase date. Additionally, we provide a one‑year general warranty (including parts and labor) for all range hood products.
User Manual: English Manual – R‑2310 Series
