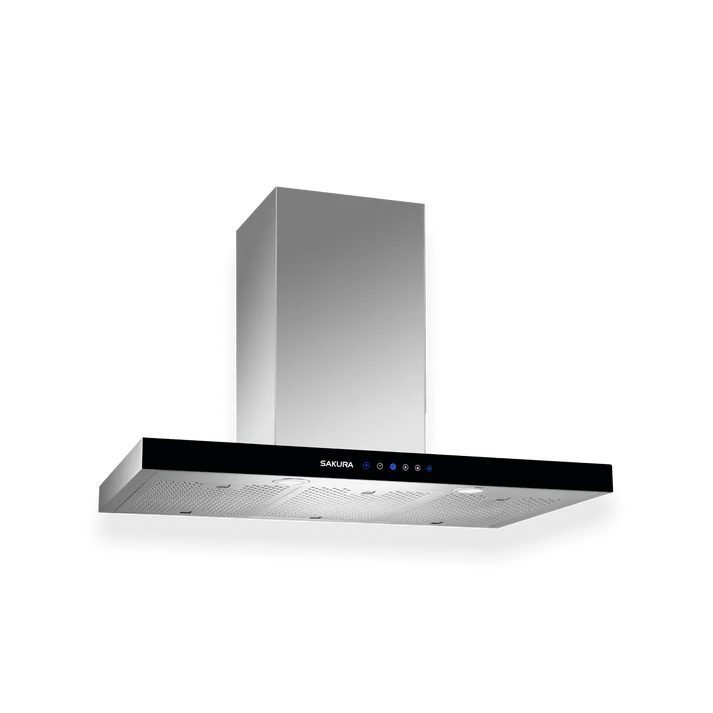

Description
Key FeaturesDimension + WeightSpecificationBuying TipsWarranty + User Manual- Made in Taiwan
- Max 1000 CFM
- Ultra quiet powerful motor provides strong exhaust power
- The direct suction design has high efficiency, which can effectively pressurize the oil fume and discharge it outside to ensure fresh air

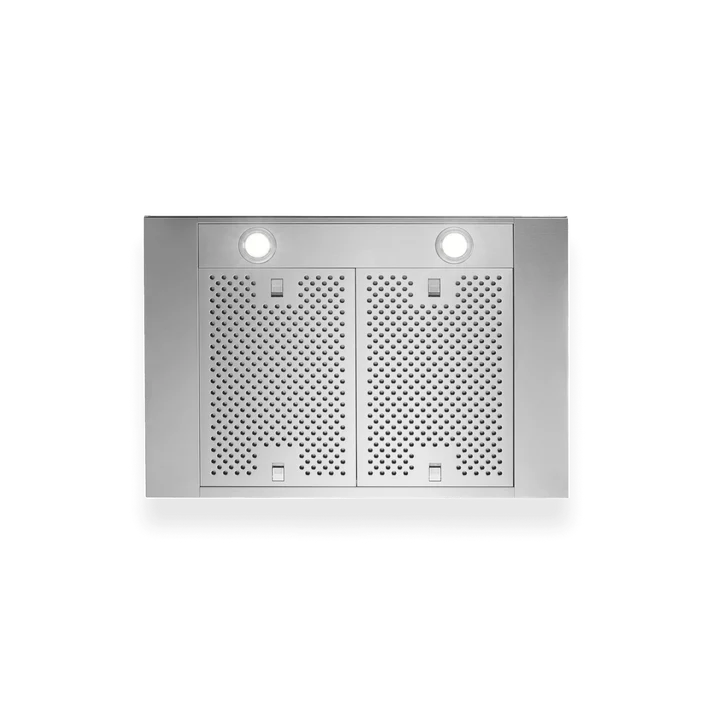

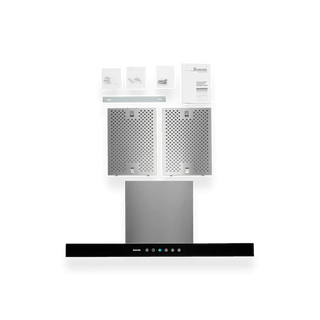

- Detachable beehive stainless filter system, dishwasher safe and easy to clean

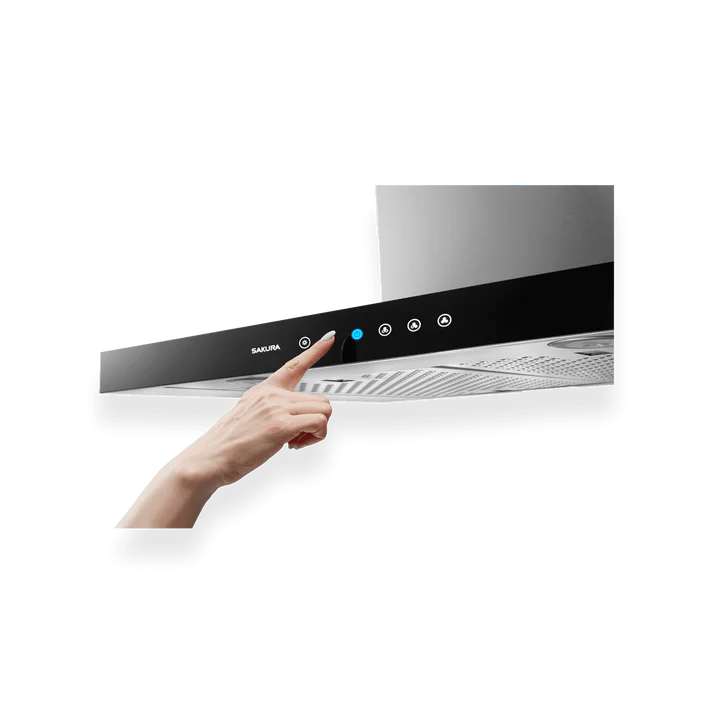

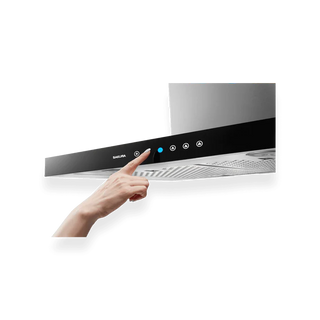

- Stylish touch screen control with 3 speeds and LED display design
- 10 minutes timer delay, taking out the rest of the smoke completely
- Dual LED lighting design, elegant and energy saving

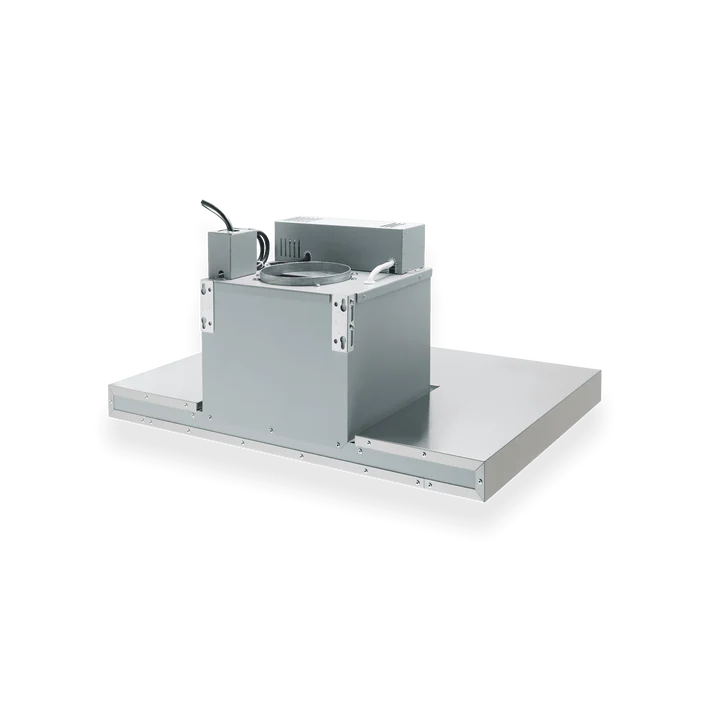

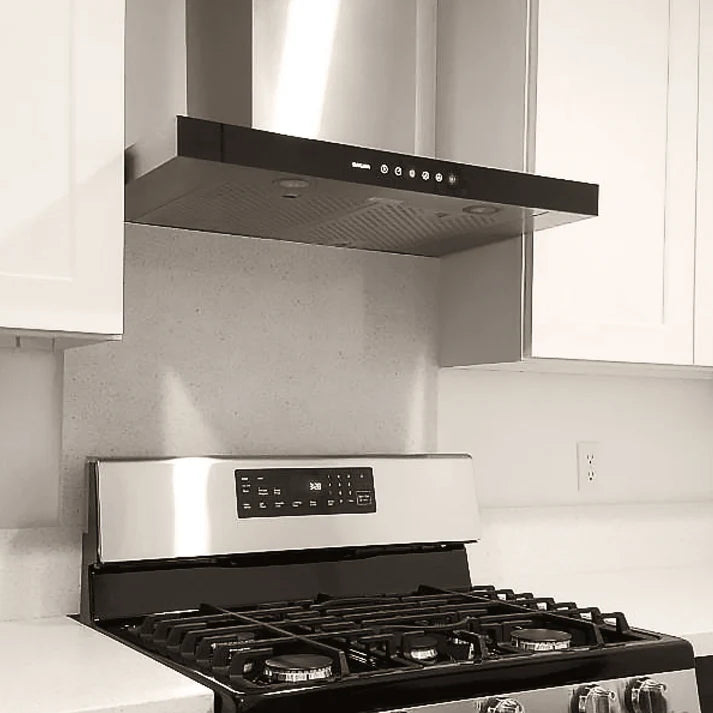

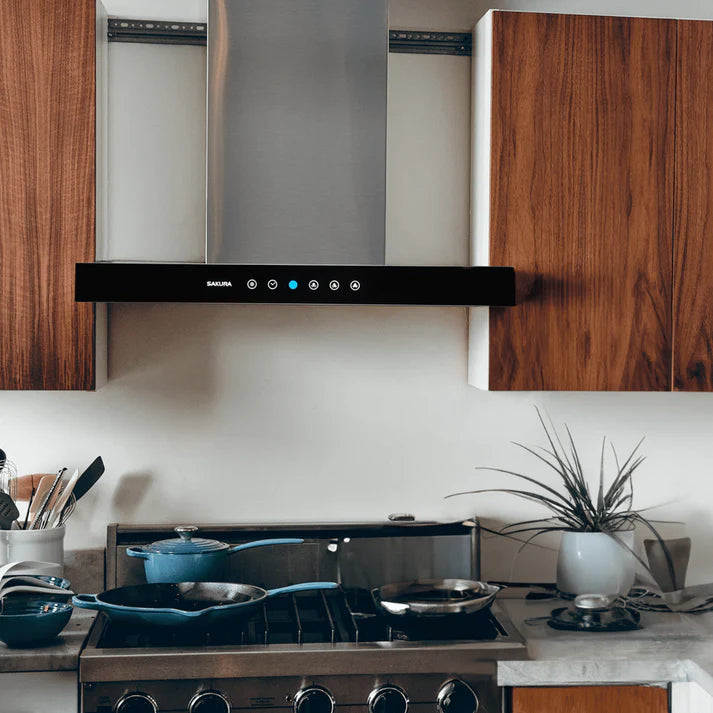

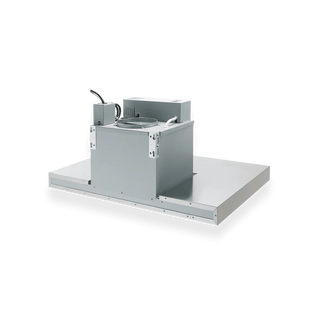

- Available for built‑in or wall‑mounted design

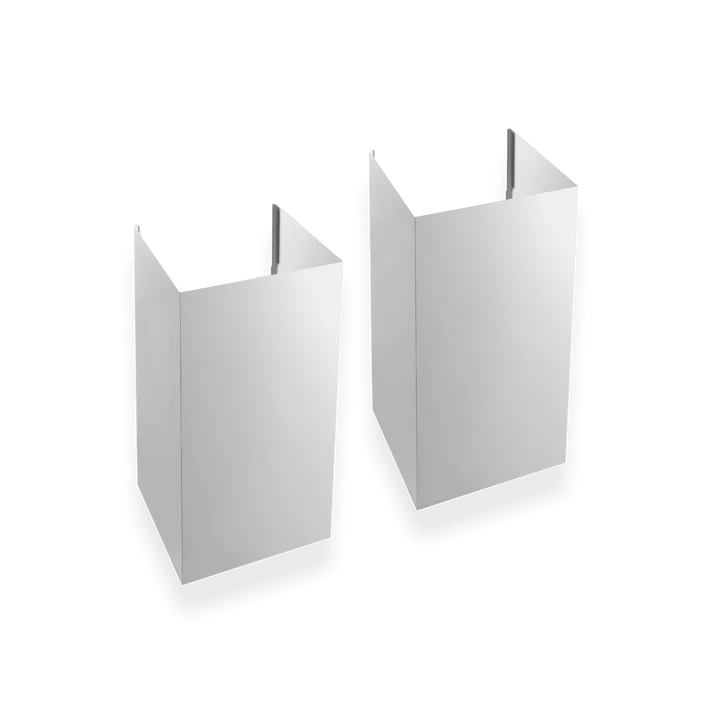

- The flue height can be adjusted to fit up to 8′ or 9′ ceilings

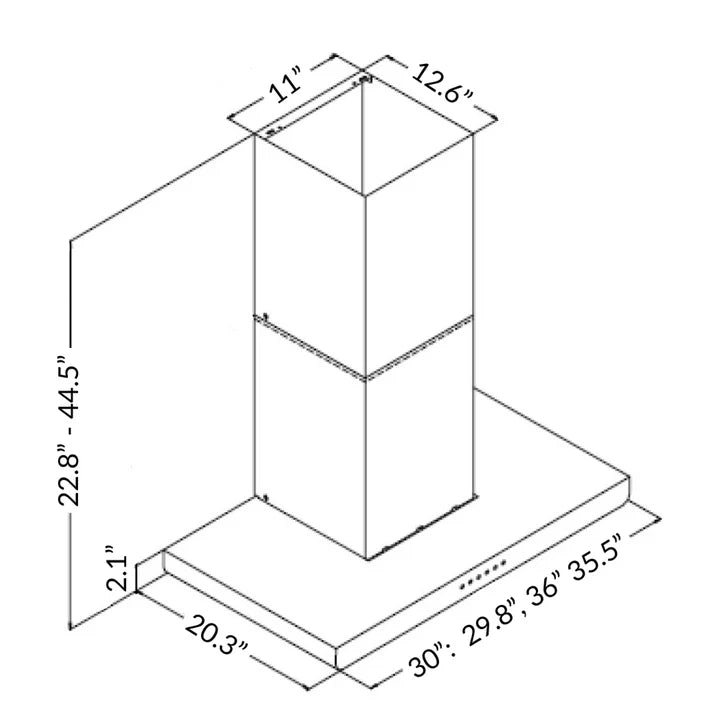

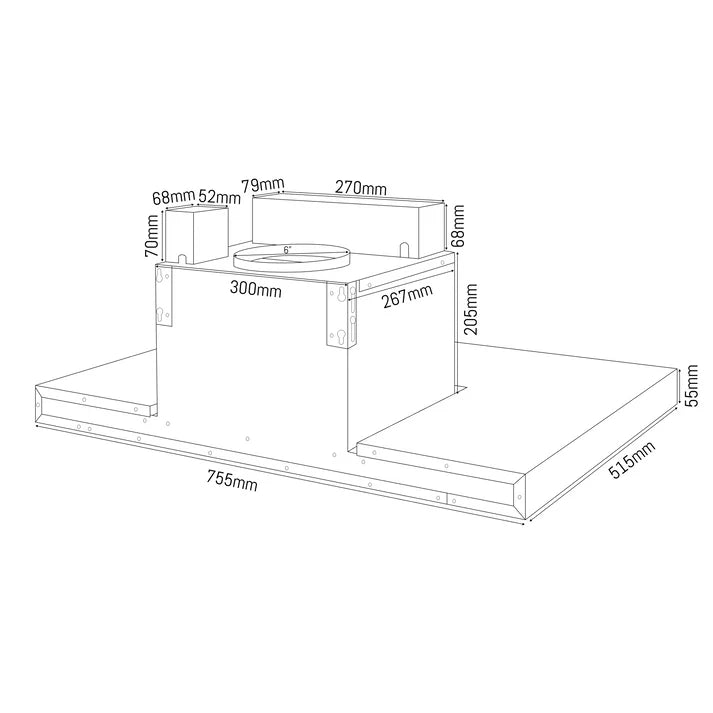

Dimension (Inches):
30" Model – 29.8" W × 20.3" D × 2.1" H
36" Model – 35.5" W × 20.3" D × 2.1" H

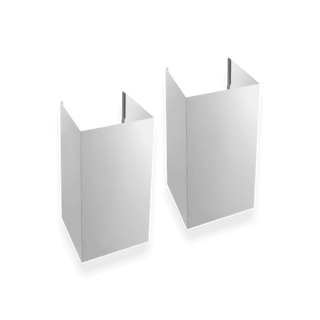

Adjustable Flue Set: 12.6" W × 11" D × 23.6‑46.34" H
Net Weight: 17‑19.5 kg
Gross Weight: 23‑26 kg
- Motor: Single AC motor
- Filter: Stainless Beehive Filter
- Duct Size: 6”
- Illumination: LED 1W × 2
- Switch Type: Sensor touch screen
- Speed: 3 speeds
- Noise level: 2 ‑ 5.5 Sones
- CFM: 250 ‑ 1000
- Power Consumption: 350W
- Voltage: 120V ~ 60Hz
- Safety Certificate: CSA
- Origin: Made in Taiwan
Step 1: Measuring the duct size — Sakura range hoods require a duct size of 6” or larger round opening.
Step 2: Measuring the distance between range hood and countertop — From the bottom of the cabinet, or the top of the range hood, to the countertop.
Distance Requirement from top of hood to the counter top:
- Electric stove: 26‑28”
- Gas stove: 28‑30”
Warranty: One Year Parts and Five‑Year Motor Warranty. We offer a five‑year limited warranty on range hood motors, starting from the purchase date. Additionally, we provide a one‑year general warranty (including parts and labor) for all range hood products.
User Manual: English Manual – M3000 Series
