Description
Key FeaturesDimension + WeightSpecificationBuying TipsWarranty + User Manual- Made in Taiwan
- Max 1200 CFM
- Newest award winning design of DC motors with turbo speeds
- Two powerful DC motors, increasing suction up to 35%, RPM increase up to 40% from AC motors

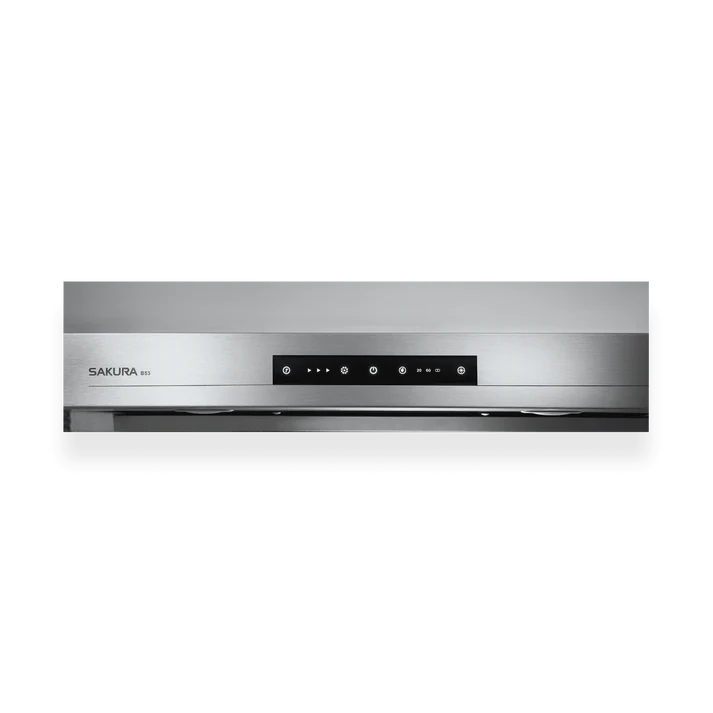

- Touch screen control with 4 speeds satisfies all cooking requirements
- Whispering quiet air purifier function keeps kitchen air refreshed

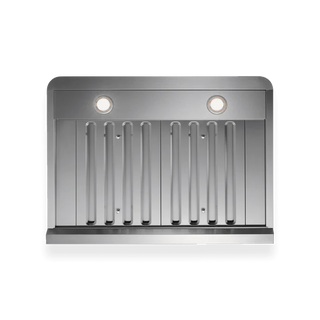

- Baffle filter system, all stainless steel dishwasher safe and easy to clean
- Triple oil collection
- Dishwasher safe stainless steel detachable rear oil trapping container
- Air Change Mode uses little energy to keep smell away
- 20 and 60 minutes timer or stay‑on function allows you walk away after cooking

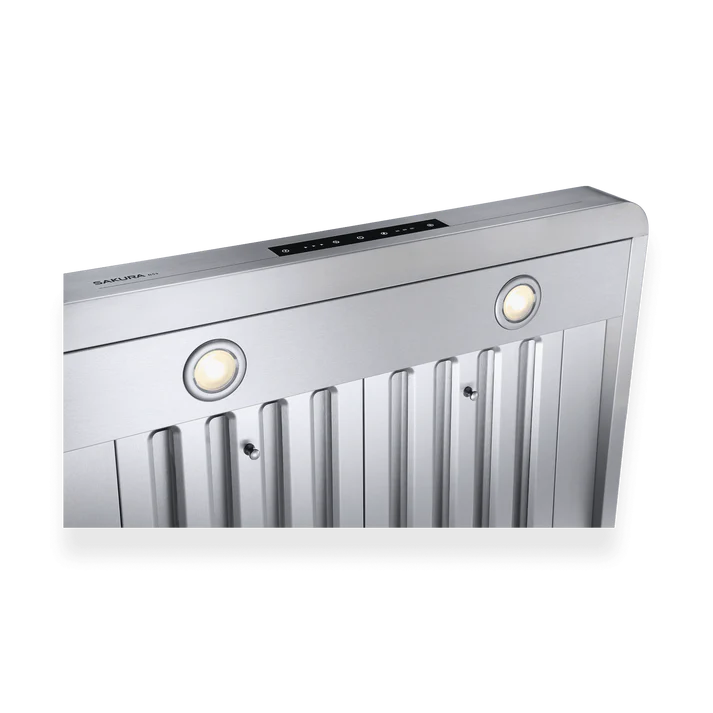

- Dual LED light both bright and save energy
- Distance Requirement from top of hood to the countertop: Electric stove: 33‑35” / Gas stove: 35‑37”

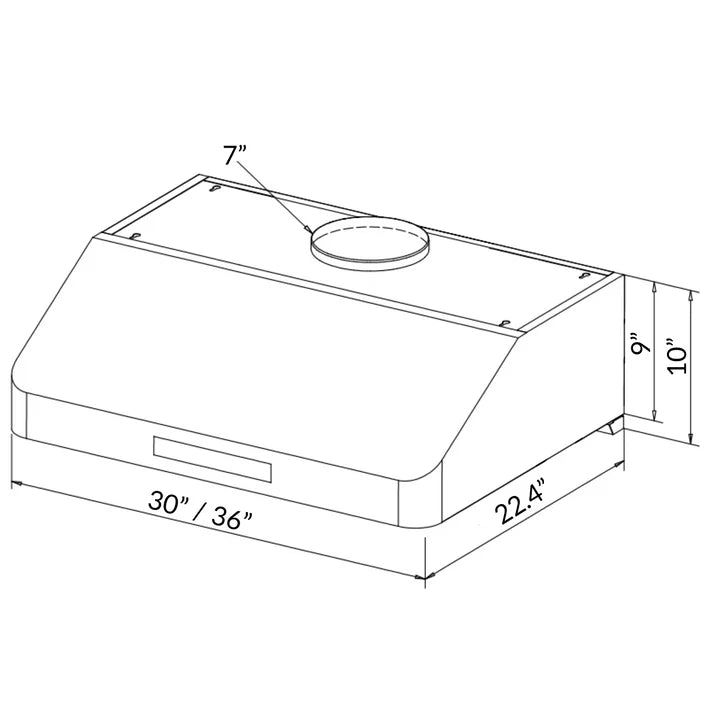

Dimension (Inches):
30" Model – 30" W × 22.4" D × 9" H
36" Model – 36" W × 22.4" D × 9" H
Net Weight: 20‑24kg
Gross Weight: 24‑28kg
- Motor: Twin DC Motors

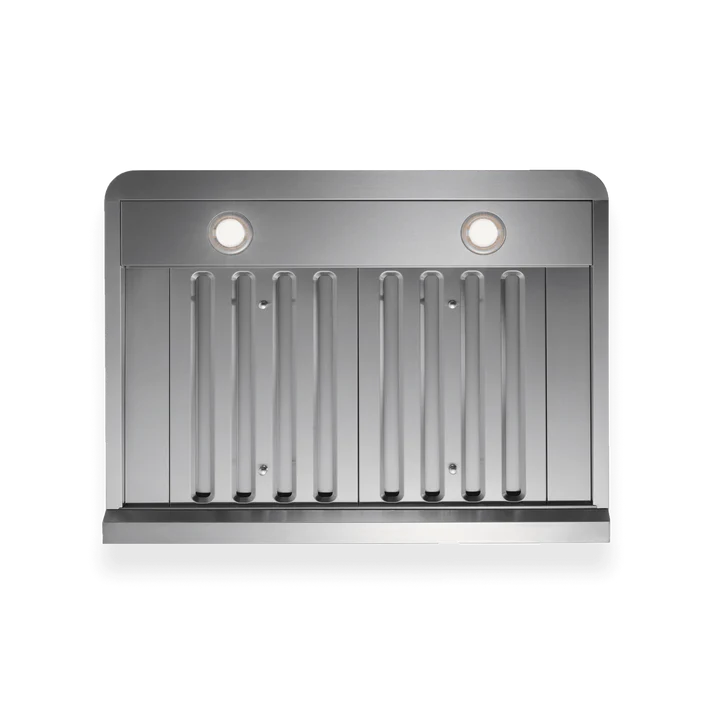

- Filter: Stainless Baffle Filter

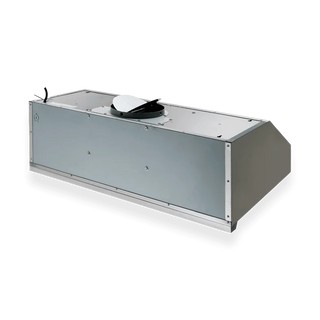

- Duct Size: 6" / 7"
- Illumination: LED 1W × 2
- Switch Type: Sensor touch screen
- Speed: 4 speeds
- Noise level: 2 ~ 5 Sones
- CFM: 150 ‑ 1200
- Power Consumption: 280W
- Voltage: 120V ~ 60Hz
- Safety Certificate: CSA
- Origin: Made in Taiwan
Step 1: Measuring the duct size — Sakura range hoods require a duct size of 6” or larger round opening.
Step 2: Measuring the distance between range hood and countertop — From the bottom of the cabinet, or the top of the range hood, to the countertop.
Distance Requirement from top of hood to the countertop:
- Electric stove: 33‑35”
- Gas stove: 35‑37”
Warranty: One Year Parts and Five‑Year Motor Warranty. We offer a five‑year limited warranty on range hood motors, starting from the purchase date. Additionally, we provide a one‑year general warranty (including parts and labor) for all range hood products.
User Manual: English Manual – B53 Series
