Description
Key FeaturesDimension + WeightSpecificationBuying TipsWarranty + User Manual- Made in Taiwan
- Max 1000 CFM

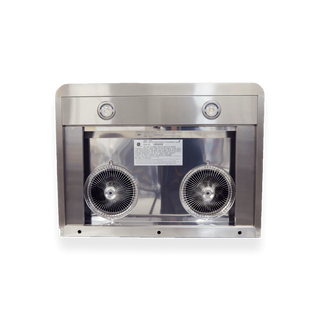

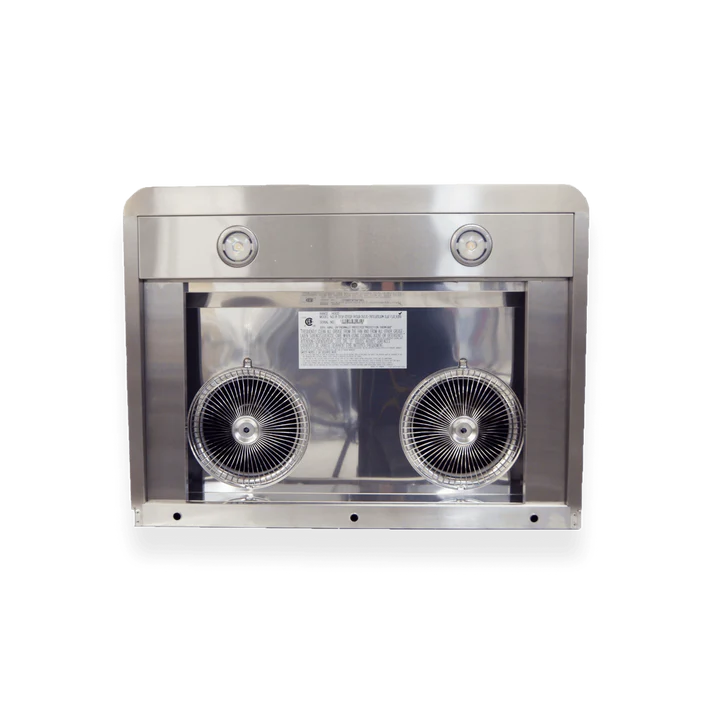

- Two powerful AC motors with innovative patented exhaust air flow
- 2 speeds metal button control satisfies all cooking requirements
- 30‑minute delay auto shutoff function
- Intelligent air‑fresh mode

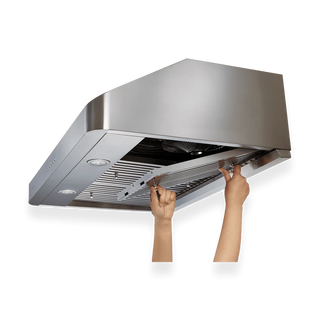

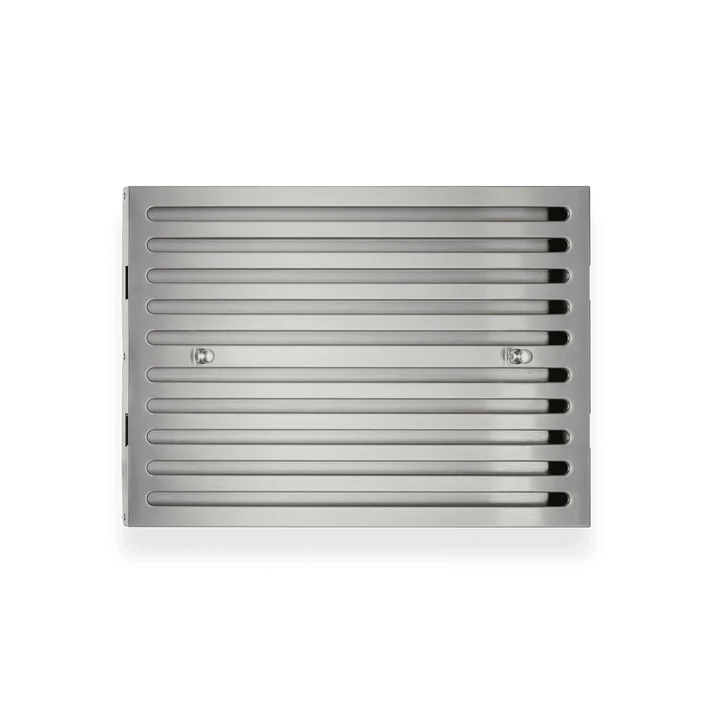

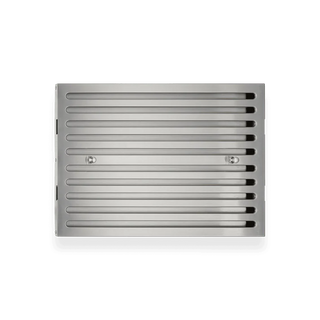

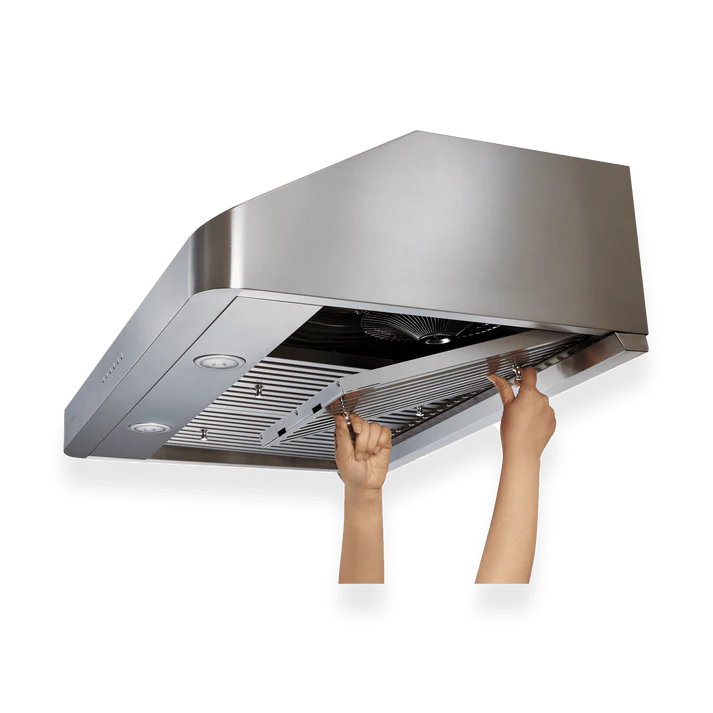

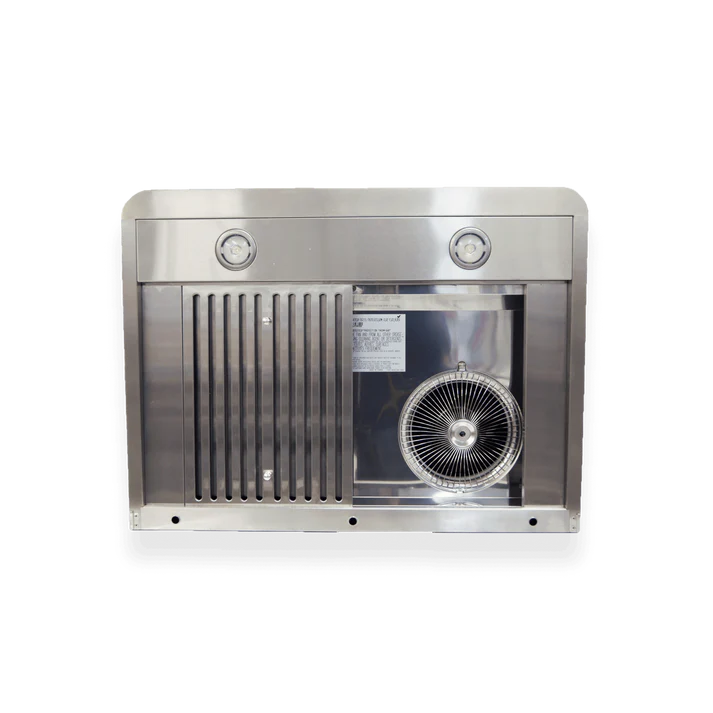

- Baffle filter system, all stainless steel dishwasher safe and easy to clean

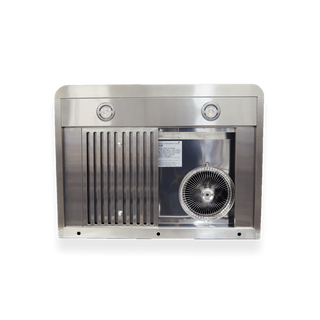

- Dishwasher safe stainless steel detachable rear oil trapping container
- Dual LED light both bright and save energy

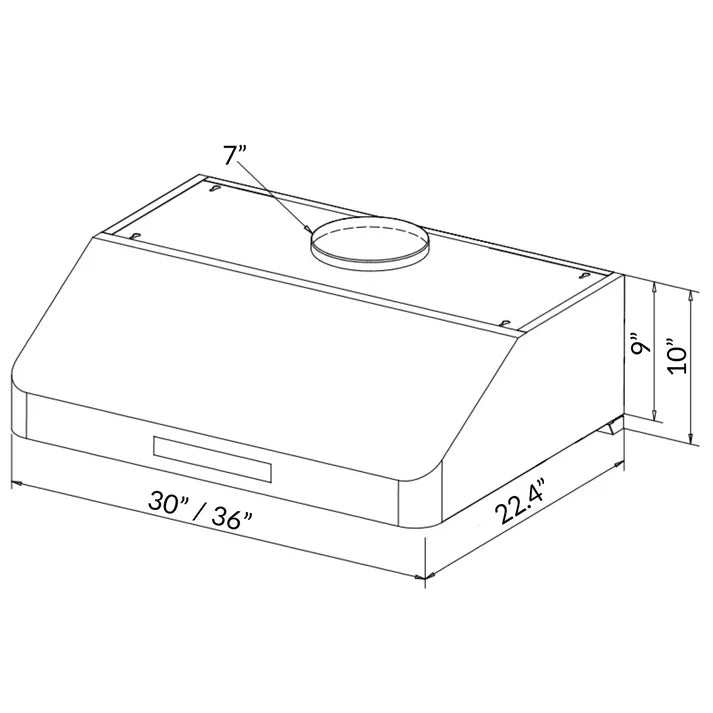

Dimension (Inches):
30" Model – 30" W × 22.4" D × 9" H
36" Model – 36" W × 22.4" D × 9" H
Net Weight: 20kg
Gross Weight: 24kg

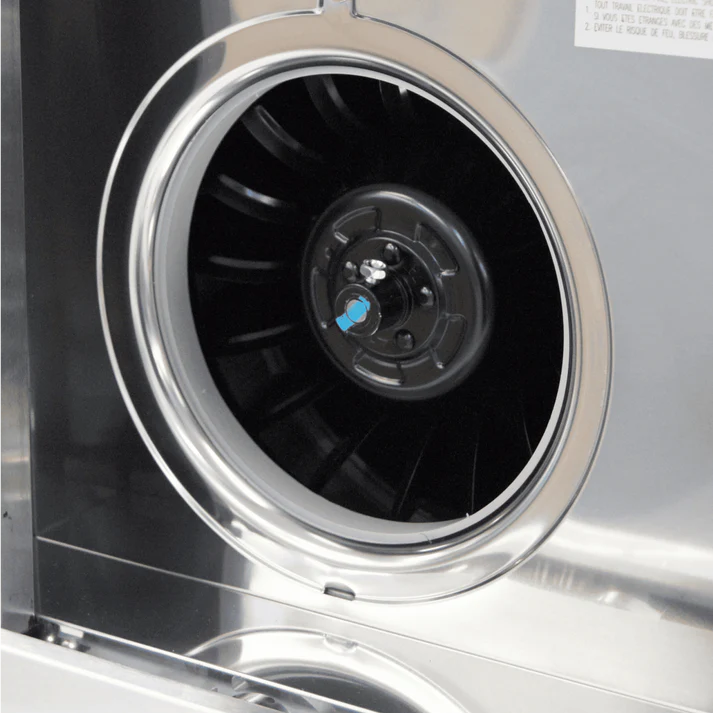

- Motor: Twin AC Motors
- Filter: Stainless Baffle Filter
- Duct Size: 6” / 7”
- Illumination: LED 1W × 2
- Switch Type: Metal Control Buttons
- Speed: 2 speeds
- Noise level: 3 ‑ 6 Sones
- CFM: 250 ‑ 1000
- Power Consumption: 180W
- Voltage: 120V ~ 60Hz
- Safety Certificate: CSA
- Origin: Made in Taiwan
Step 1: Measuring the duct size — Sakura range hoods require a duct size of 6” or larger round opening.
Step 2: Measuring the distance between range hood and countertop — From the bottom of the cabinet, or the top of the range hood, to the countertop.
Distance Requirement from top of hood to countertop:
- Electric stove: 33‑35”
- Gas stove: 35‑37”
Warranty: One Year Parts and Five‑Year Motor Warranty. We offer a five‑year limited warranty on range hood motors, starting from the purchase date. Additionally, we provide a one‑year general warranty (including parts and labor) for all range hood products.
User Manual: English Manual – B51 Series
