A beautiful bath can look perfectly proportioned on a product page, then feel crowded the moment a door catches its edge or there is no comfortable place to step out. Knowing how to measure bathtub clearance before you order protects the calm, considered feel of your renovation - and prevents costly changes once tiling, plumbing and flooring are in place.
The aim is not simply to make the bath fit. It is to create enough room to use it comfortably, clean around it, operate taps without awkward reaching and move through the bathroom with ease. For a freestanding bath, that surrounding space is part of the design.
Start with the room, not the bathtub
Measure the completed room dimensions first: wall to wall, finished floor to ceiling, and the locations of the door, window, toilet, vanity, shower and existing plumbing. Use a steel tape measure rather than relying on estate plans or old drawings. A few millimetres can matter in a compact ensuite, especially where floor finishes and wall boards have not yet been installed.
Take each measurement at floor level and again at the height of the bath rim. Older homes can have walls that are not entirely square, while boxed-in pipes or tiled skirting can reduce usable width. Record the smallest measurement, not the most generous one.
If the room is still stripped back, allow for every finished layer. Tile, adhesive, waterproofing, wall board and flooring can each take up space. The same applies to a tiled hob or a raised platform beneath a bath. Your final layout should be based on finished dimensions, not bare studs and subflooring.

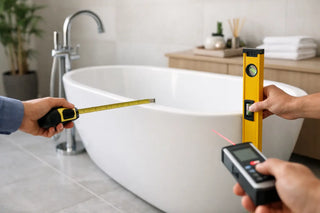

How to measure bathtub clearance around the bath
A bath dimension tells you the size of the fixture itself. Clearance is the usable area around it. Mark the bath footprint on the floor with low-tack tape, then add the space needed to enter, exit and maintain it. This simple exercise quickly shows whether a chosen shape suits the room.
For a freestanding bath, aim for a comfortable walking route around at least one long side and at the end used for entry. Around 600 mm of open floor beside the bath is a generous, practical target where the room allows. Tighter rooms may work with less, but anything below about 450 mm can feel restrictive and makes cleaning difficult.
Leave a considered gap between the bath and walls. A slim perimeter gap can look refined, but it still needs to be wide enough for installation, cleaning and any movement in the room. Many homeowners prefer roughly 75 to 100 mm around exposed sides of a freestanding bath, though the right allowance depends on the bath profile, wall finish and manufacturer instructions.
An alcove bath follows a different rule. Its length and width must suit the prepared recess precisely, with room for the required installation system and wall finishes. Do not assume that a nominal 1700 mm bath will fit a 1700 mm opening. Measure the actual product, check the technical drawing and confirm the fitting tolerance with your installer.
Measure the entry side carefully
The entry side is where clearance matters most. Stand within your taped outline and mimic getting in and out of the bath. Is there enough room to turn, lay down a bath mat and reach a towel rail without brushing against a vanity or toilet? This is especially valuable when designing for children, guests or anyone who may benefit from more stable footing.
A bath positioned close to a vanity can still work if the circulation route remains clear, but drawers and cabinet doors must open fully. Check the vanity’s projected depth and its door or drawer swing, not just the cabinet box measurement.
Check doors, drawers and shower screens
Door swings are one of the most frequently missed measurements in bathroom planning. Open the bathroom door to its fullest position and mark its arc on the floor. Repeat this for vanity doors, tall storage, laundry cupboards and any inward-opening shower screen. None of those moving elements should collide with the bath, taps or a person standing beside the bath.
Where space is limited, the solution may be a different bath orientation, a narrower vanity, an outward-opening door where appropriate, or a pocket door. The best choice depends on privacy, local requirements and how the room is used each day. Do not choose a smaller bath automatically if a minor layout adjustment can preserve both comfort and a more luxurious bathing experience.
If the bath will sit beside a shower, measure beyond the wet-zone boundary. You need space to open the shower screen, step out safely and keep the bath finish from becoming a constant splash zone. A freestanding bath is a statement piece, but it should not turn everyday cleaning into a chore.
Plan clearance for taps, waste and plumbing
The visible space around a bath is only half the calculation. Taps, waste connections and access requirements must also fit beneath or behind it.
Freestanding floor-mounted bath taps need a clear installation position beside the bath. Check the technical drawing for the recommended distance between the tap body and bath edge, as well as the reach of the spout. A tap placed too far away can splash; one placed too close can make the bath difficult to clean or may interfere with the rim.
For wall-mounted taps, measure the bath’s rim height and the finished wall depth. The spout needs sufficient projection to reach inside the bath, not merely over its outside edge. Consider where the controls will sit too. They should be easy to operate from outside the bath and should not conflict with a window reveal, mirror edge or shelving.
Also identify how the waste will connect. Some freestanding designs require specific clearance below the bath or a particular floor waste position. If the bath is set against a wall, make sure the plumber can access the connection during installation. A slim silhouette is desirable, but inaccessible plumbing can make a future repair far more disruptive.
Consider the toilet and vanity zones
A bathtub can technically fit in a room while making the toilet or vanity unpleasant to use. Mark each fixture’s footprint and the open floor area in front of it before committing to a bath size.
Your toilet needs clear space in front and to both sides, while a vanity needs standing room plus clearance for doors and drawers. Exact minimums can vary by local building rules and the needs of your household, so confirm requirements with a qualified designer, contractor or inspector. For a renovation intended to feel elevated rather than merely compliant, give these zones more breathing room where possible.
This matters particularly in compact layouts where a 1500 mm bath may be a better choice than a 1700 mm model. A shorter bath with graceful proportions and proper circulation often feels more premium than an oversized one that dominates the room.
Do not forget delivery clearance
Before ordering, measure the route from the entrance to the bathroom. Include the width and height of exterior doors, hallways, stair turns, lifts, landings and internal doorways. Compare these measurements with the packaged dimensions, not only the bath itself.
Freestanding baths can be substantial pieces, particularly in stone resin, cast iron or solid-surface materials. A bath that cannot pass a tight stair turn may require alternative delivery planning or, in rare cases, access through a larger opening. Check the product weight too, so your installer can plan safe handling and confirm the floor structure is suitable.
Make a full-size layout before you buy
Tape is useful, but cardboard templates or sheets of builder’s paper offer an even clearer view of the final arrangement. Mark the bath, vanity, toilet, door arcs and tap position at full scale. Walk the route from the door to the basin, toilet and bath as you would on a busy morning.
Look for the small frustrations: a towel rail blocked by a door, a bath edge too close to a drawer, or a narrow gap that will collect dust but not admit a mop. These details separate a bathroom that photographs well from one that feels serene every day.
Bring your final room sketch, finished dimensions and preferred bath model to your installer before placing an order. At Kits, the most successful bathroom transformations begin with a layout that gives the bath room to be admired, used and maintained. Measure with the finished room in mind, and your chosen bath can become the quiet centrepiece your renovation deserves.
